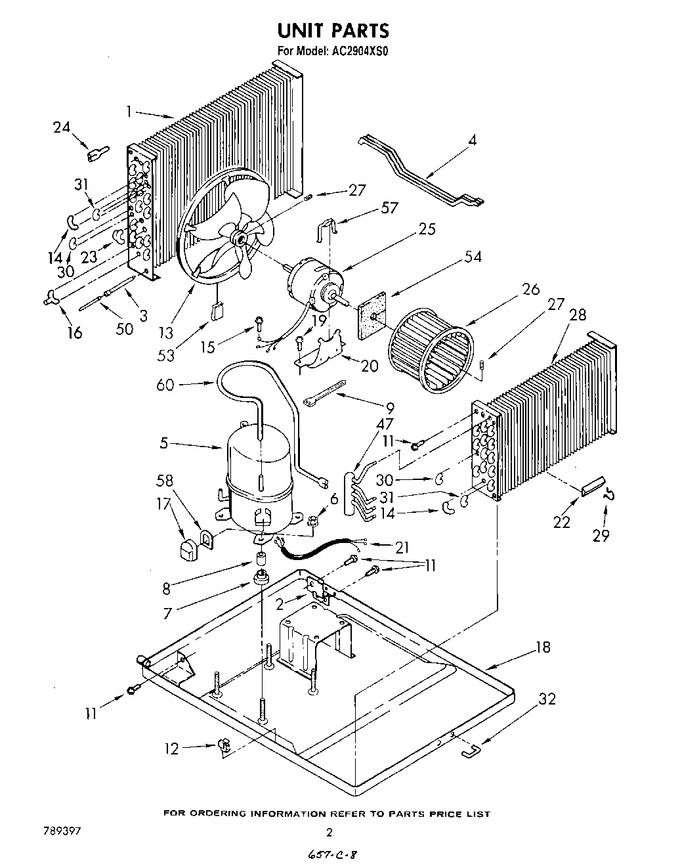

02 - Unit


03 - Air Flow


04 - Cabinet


05 - Accessory Kit


06 - Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	952702		Condenser		Appelez-nous	-
2	856028		Support, Condenser (rs)		Appelez-nous	-
3	484230		Tube, Outlet (includes No.50)		Appelez-nous	-
4	952831		Tube, Restrictor (3) (length 52.0``)		Appelez-nous	-
5	1155128		Compressor		Appelez-nous	-
6	858121		Locknut (4)		Appelez-nous	-
7	475041		Grommet (4)		Appelez-nous	-
8	858116		Sleeve (4)		Appelez-nous	-
9	WPW10339879		Tie, Cable (2)   (Replaces: 857547)				$ 7.47
11	WP489069		Screw   (Replaces: 488480)			Immediately	$ 7.56
11	WP308685		Screw, Repair   (Replaces: 488861)			Immediately	$ 7.08
12	642684		Clamp (2)		Appelez-nous	-
13	646247		Blade, Fan		Appelez-nous	-
14	855644		Bend, Return Condenser (1) Evaporator (2)		Appelez-nous	-
15	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
16	476078		Bend, 3-way Return (2)		Appelez-nous	-
17	948515		Cover, Terminal		Appelez-nous	-
18	856498		Base, Assembly		Appelez-nous	-
19	488311		Screw, 1/4-20 X 5/8		Appelez-nous	-
20	471719		Cradle, Motor (2)		Appelez-nous	-
21	484136		Harness, Wiring (compressor Service)		Appelez-nous	-
22	472046		Anticipator		Appelez-nous	-
23	953169		Bend, Return (3-way)		Appelez-nous	-
24	466527		Tube, Flow Divider		Appelez-nous	-
25	948544		Motor, Fan		Appelez-nous	-
26	855934		Wheel, Blower		Appelez-nous	-
27	595085		Screw, 5/16 X 1/4		Appelez-nous	-
28	952685		Evaporator		Appelez-nous	-
29	472047		Clip (2)		Appelez-nous	-
30	855199		Bend, Return Condenser (32 Evaporator (12)		Appelez-nous	-
31	854624		Bend, Return Condenser (5 Evaporator (18)		Appelez-nous	-
32	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
47	952691		Tube, Manifold (evaporator)		Appelez-nous	-
50	49599		Strainer, Tube		Appelez-nous	-
53	876034		Clip, Balancing		Appelez-nous	-
54	476719		Seal, Shaft		Appelez-nous	-
57	WPY015825		Clip, Motor (2)   (Replaces: 49633)				$ 22.65
58	947029		Gasket, Terminal Cover		Appelez-nous	-
60	952830		Tube, Suction		Appelez-nous	-
