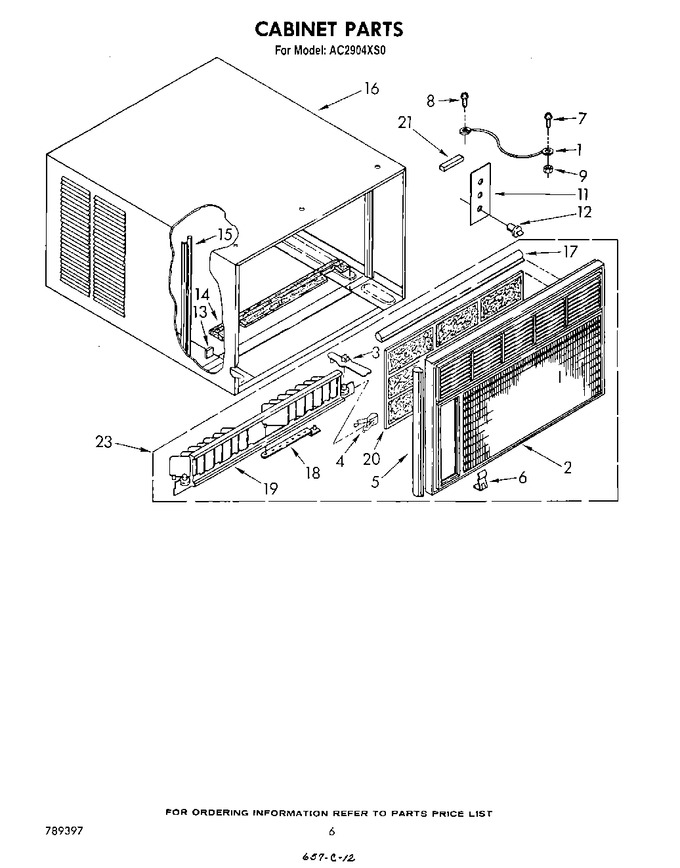

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	857078		Wire, Ground		Appelez-nous	-
2	947875		Cabinet, Front		Appelez-nous	-
3	644165		Handle, Vertical Louver (2)		Appelez-nous	-
4	641484		Spring, Detent (2)				$ 150.14
5	644168		Seal, Side (2)		Appelez-nous	-
6	644169		Clip, Front (4)		Appelez-nous	-
7	488853		Screw, 8-32 X 3/8		Appelez-nous	-
8	488854		Screw, 8 X 3/8		Appelez-nous	-
9	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
11	952553		Plate, Escutcheon		Appelez-nous	-
12	947264		Knob, Control (3)		Appelez-nous	-
13	WP854334		Spacer, Seal   (Replaces: 857471)				$ 12.55
14	857154		Seal, Bottom		Appelez-nous	-
15	476796		Seal, Side (2)		Appelez-nous	-
16	856602		Cabinet		Appelez-nous	-
17	644167		Seal, Top & Bottom (2)		Appelez-nous	-
18	644166		Link (2)		Appelez-nous	-
19	644156		Louver, Vertical		Appelez-nous	-
20	648475		Filter, Air		Appelez-nous	-
21	469175		Spacer, Escutcheon (2)		Appelez-nous	-
23	947874		Front, Complete		Appelez-nous	-
	LIT1156066		Sheet, Tech And Wiring Diagram		Appelez-nous	-
	LIT789397		List, Repair Parts		Appelez-nous	-
	LIT1156067		Guide, Energy		Appelez-nous	-
	LIT950355		Guide, Use And Care		Appelez-nous	-
