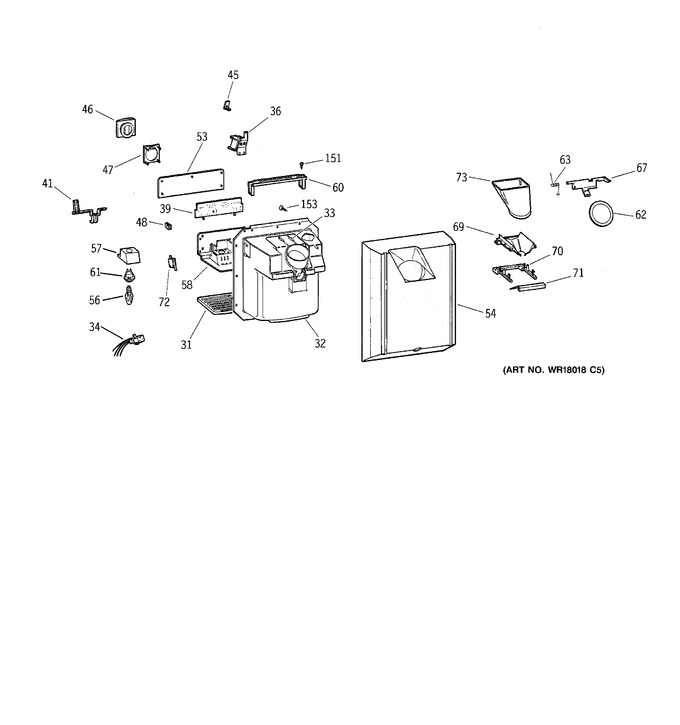

SELECT A DIAGRAM

1 - Freezer Door


2 - Dispenser


3 - Fresh Food Door


4 - Freezer Section


5 - Fresh Food Section


6 - Fresh Food Section


7 - Unit Parts


8 - Icemaker Wr30x0327


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	WR17X4152		Grille Recess Bk		Appelez-nous	-
32	WR17X10517		Recess Disp Bk		Appelez-nous	-
33	WR51X353		Heater Recess		Appelez-nous	-
34	WR23X456		Harness Light Sw.		Appelez-nous	-
36	WR62X78		Solenoid Asm		Appelez-nous	-
39	WR55X129		Module Time Delay		Appelez-nous	-
41	WR17X3493		Cradle Actuator		Appelez-nous	-
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
46	WG03A00194		Pad Actuator Bk   (Replaces: WR2X8702)				$ 15.72
47	WR2X8681		Support Actuator Pad Bk		Appelez-nous	-
48	WR2X8676		Knob Recess Disp Bk		Appelez-nous	-
53	WR17X10253		Nameplate Recess Bk		Appelez-nous	-
54	WR17X3927		Insulation Recess		Appelez-nous	-
56	STD372071		Lamp 7c7		Appelez-nous	-
57	WR2X8725		Reflector Lamp Socket		Appelez-nous	-
58	WR17X3139		Shield Recess Disp Bk		Appelez-nous	-
60	WR2X8674		Cover Elect		Appelez-nous	-
61	WR2X9561		Socket Lamp E12		Appelez-nous	-
62	WR01L01914		Door Recess Asm   (Replaces: WR17X3093)				$ 58.69
63	WR2X8663		Spring Recess Door		Appelez-nous	-
67	WR17X3089		Crank Door Recess		Appelez-nous	-
69	WR17X3095		Funnel Recess Shield Bk		Appelez-nous	-
70	WR2X8943		Supt. Funnel Guard Bk		Appelez-nous	-
71	WR17X10282		Deflector Ice Bk		Appelez-nous	-
72	WG03L00633		Switch Cradle Actuator   (Replaces: WR23X366)				$ 58.69
73	WR17X3125		Chute Ice		Appelez-nous	-
151	WR1X1554		Screw 8-18 Ab Ihw 9/16 S		Appelez-nous	-
153	WR1X1505		Scr Recess Disp 8-18 Ab		Appelez-nous	-
