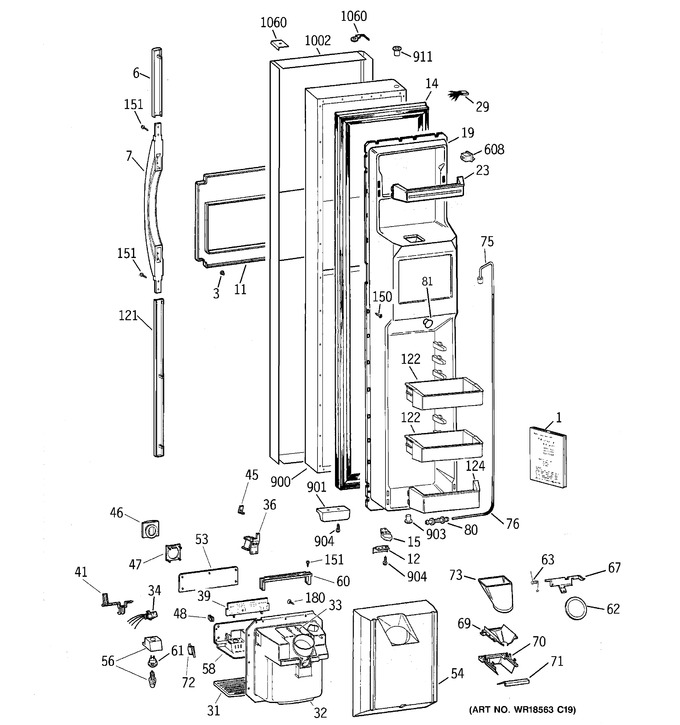

1 - Freezer Door
2 - Fresh Food Door
3 - Freezer Section
4 - Freezer Shelves
5 - Fresh Food Section
6 - Fresh Food Shelves
7 - Unit Parts
8 - Icemaker Wr30x0328
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51284 | Pm Mini Manual Wiring |
|
- | |||||
| 1 | 49-60021 | Pm Guide Owners |
|
- | |||||
| 3 | WR2X8669 | Fastener Tubular |
|
- | |||||
| 6 | WR12X10151 | Tail Handle Sxs Bk |
|
- | |||||
| 7 | WR12X10132 | Handle Sxs Asm Bk |
|
- | |||||
| 10 | WR01X10065 | Scr 8-18 Ba Por 5/8 Ss |
|
- | |||||
| 11 | WR38X10123 | Trim Recess Disp Bk |
|
- | |||||
| 12 | WR02X10028 | Stop Door Bk |
|
- | |||||
| 14 | WR24X561 | Gasket Door Fz Bk |
|
- | |||||
| 15 | WR2X9247 | Cam Closure Bk Fz |
|
- | |||||
| 19 | WR77X10001 | Door Inner Fz |
|
- | |||||
| 23 | WR71X2619 | Module Asm Fz |
|
- | |||||
| 29 | WR23X10118 | Harness Dr Hinge Fz |
|
- | |||||
| 31 | WR17X4152 | Grille Recess Bk |
|
- | |||||
| 32 | WR17X10514 | Recess Disp Bk |
|
- | |||||
| 33 | WR51X420 | Heater Recess |
|
- | |||||
| 34 | WR23X456 | Harness Light Sw. |
|
- | |||||
| 36 | WR62X78 | Solenoid Asm |
|
- | |||||
| 39 | WR55X129 | Module Time Delay |
|
- | |||||
| 41 | WR17X3493 | Cradle Actuator |
|
- | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 46 | WG03A00194 | Pad Actuator Bk (Replaces: WR2X8702) |
|
$ 15.72 | |||||
| 47 | WR2X8681 | Support Actuator Pad Bk |
|
- | |||||
| 48 | WR2X8676 | Knob Recess Disp Bk |
|
- | |||||
| 53 | WR17X10077 | Nameplate Recess Bk |
|
- | |||||
| 54 | WR17X4208 | Insulation Recess |
|
- | |||||
| 56 | WR2X8686 | Reflector Lamp Socket |
|
- | |||||
| 56 | STD372071 | Lamp 7c7 |
|
- | |||||
| 58 | WR17X3156 | Shield Recess Disp Bk |
|
- | |||||
| 60 | WR2X8685 | Cover Elect |
|
- | |||||
| 61 | WR2X9561 | Socket Lamp E12 |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X3093) |
|
$ 58.69 | |||||
| 63 | WR2X8663 | Spring Recess Door |
|
- | |||||
| 65 | WZ04X0230 | Screw 8-15 A Pa 3/8 Ss |
|
- | |||||
| 67 | WR17X3089 | Crank Door Recess |
|
- | |||||
| 69 | WR17X3095 | Funnel Recess Shield Bk |
|
- | |||||
| 70 | WR2X8943 | Supt. Funnel Guard Bk |
|
- | |||||
| 71 | WR17X10282 | Deflector Ice Bk |
|
- | |||||
| 72 | WG03L00633 | Switch Cradle Actuator (Replaces: WR23X366) |
|
$ 58.69 | |||||
| 73 | WR17X4206 | Chute Ice |
|
- | |||||
| 75 | WR17X3670 | Grommet Tube Asm |
|
- | |||||
| 76 | WR2X8933 | Sleeve Water Line |
|
- | |||||
| 80 | WG03A00026 | Nut & Union Asm (Replaces: WR2X8545) |
|
$ 15.72 | |||||
| 81 | WR1X2077 | Plug Button |
|
- | |||||
| 86 | WH2X940 | Scr 8-32 Tt Fl 1/2 S |
|
- | |||||
| 87 | WZ04X0241 | Scr 8-15 Ab Tr 1/2 Ss |
|
- | |||||
| 121 | WR12X10192 | Tail Handle Sxs Bk |
|
- | |||||
| 122 | WG03F00953 | Module Asm (Replaces: WR71X2703) |
|
$ 35.91 | |||||
| 124 | WR71X2701 | Module Asm |
|
- | |||||
| 134 | WR01X10019 | Scr 6-10 Pl Flp 1/2 S |
|
- | |||||
| 150 | WR1X1791 | Scr 8-15 Spec |
|
- | |||||
| 151 | WR1X1554 | Screw 8-18 Ab Ihw 9/16 S |
|
- | |||||
| 180 | WR1X1966 | Screw 6-32 Pl Ihw 3/8 |
|
- | |||||
| 303 | WD1X1440 | Housing Terminal |
|
- | |||||
| 444 | WR23X10069 | Housing Light Lwr Asm |
|
- | |||||
| 564 | WR1X1194 | Scr 1/4 14 Ba Hx 3/4 Sn |
|
- | |||||
| 608 | WR01L07654 | Switch Light Fz (Replaces: WR23X427) |
|
$ 27.16 | |||||
| 676 | WZ04X0263 | Scr 10-16 Ab Hxw 1/2 |
|
- | |||||
| 680 | WR01X10123 | Scr 6-19 Hi/lo Hxw 1/2 S |
|
- | |||||
| 683 | WR1X1825 | Scr 8-32 Tt Pt 3/8 |
|
- | |||||
| 689 | WZ05X0246 | Scr 8-32 Spec Drill Pt |
|
- | |||||
| 758 | WD2X323 | Screw 8-32 X 3/8 Sph |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 833 | WG04A01239 | Scr 8-16x2 Ss (Replaces: WD2X295) |
|
$ 3.57 | |||||
| 862 | WB1X1178 | Screw |
|
- | |||||
| 900 | WR78X10172 | Door Foam Asm Fz Bk |
|
- | |||||
| 901 | WR10X126 | Strike Magnet Asm Bk |
|
- | |||||
| 903 | WR1X2039 | Thimble Door Btm Fz Bk |
|
- | |||||
| 904 | WR1X2134 | Scr 10-32 Pnt 1.0 S Lw |
|
- | |||||
| 911 | WR1X2041 | Thimble Door Top Bk |
|
- | |||||
| 1002 | WR99X10006 | Door Outer Fz Clad Ss |
|
- | |||||
| 1060 | WR02X10130 | Cap Corner Hinge Fz |
|
- | |||||
| 1060 | WR02X10132 | Cap Corner Mullion Fz |
|
- | |||||
| 1064 | WR01X10066 | Scr 10-24 Tr Tpt 1/2 Ss |
|
- | |||||
| 1458 | WB17X5073 | Term Blk Asm-1 Pin(1458) |
|
- |
