SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Unit Parts


8 - Icemaker Wr30x0328


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR12X10151		Tail Handle Sxs Bk		Appelez-nous	-
7	WR12X10132		Handle Sxs Asm Bk		Appelez-nous	-
12	WR02X10028		Stop Door Bk		Appelez-nous	-
16	WR2X9246		Cam Closure Bk Ff		Appelez-nous	-
89	WR2X9444		Snugger Module		Appelez-nous	-
103	WR24X562		Gasket Door Ff Bk		Appelez-nous	-
106	WR22X524		Door Dairy Clear		Appelez-nous	-
108	WR77X675		Door Inner Ff		Appelez-nous	-
109	WR71X2700		Module Asm		Appelez-nous	-
115	WR71X2702		Module Asm		Appelez-nous	-
118	WR19X37		Dish Butter Glass		Appelez-nous	-
121	WR12X10192		Tail Handle Sxs Bk		Appelez-nous	-
151	WR1X1554		Screw 8-18 Ab Ihw 9/16 S		Appelez-nous	-
274	WR23X10041		Harness Ff Lt Sw		Appelez-nous	-
609	WR23X426		Switch Light Ff		Appelez-nous	-
901	WR10X126		Strike Magnet Asm Bk		Appelez-nous	-
904	WR1X2134		Scr 10-32 Pnt 1.0 S Lw		Appelez-nous	-
910	WR78X10171		Door Foam Asm Ff Bk		Appelez-nous	-
911	WR1X2041		Thimble Door Top Bk		Appelez-nous	-
912	WR1X2132		Thimble Door Btm Ff Bk		Appelez-nous	-
1003	WR99X10005		Door Outer Ff Clad Ss		Appelez-nous	-
1061	WR02X10129		Cap Corner Hinge Ff		Appelez-nous	-
1061	WR02X10131		Cap Corner Mullion Ff		Appelez-nous	-

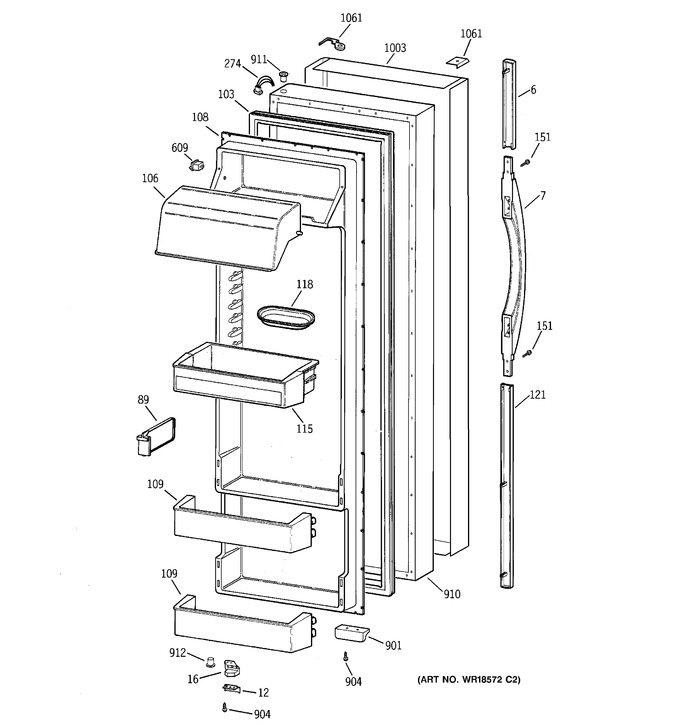

    View Diagram in Separate Window       Print Part List
