01 - Unit, Literature
02 - Airflow And Control
03 - Cabinet
04 - Optional
05 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

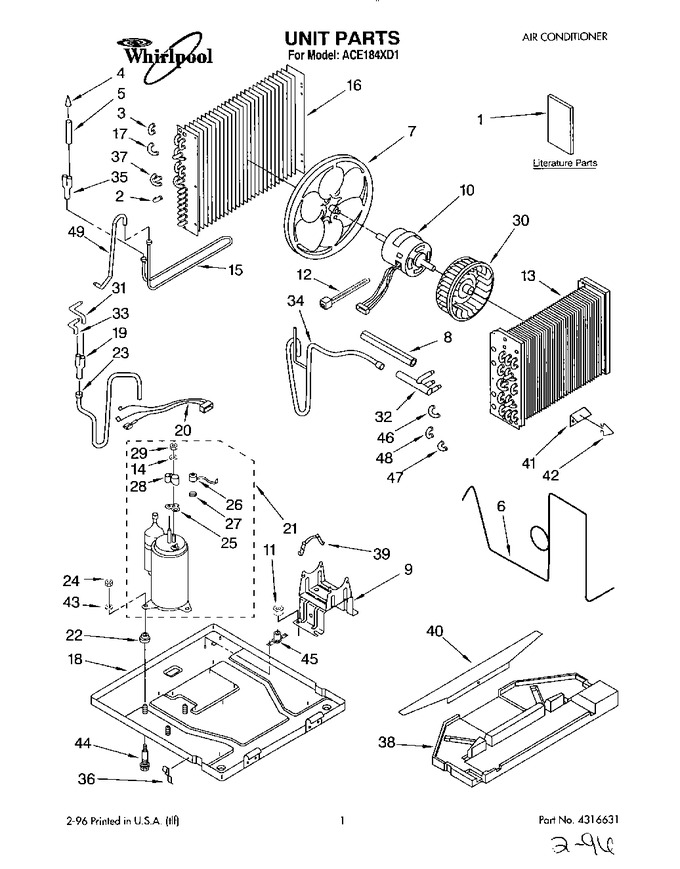

| 1 | LIT1163505 | Instructions, Installation |
|
- | |||||
| 1 | LIT1166450 | Wiring Diagram |
|
- | |||||
| 1 | LIT1166505 | Use & Care Guide |
|
- | |||||
| 1 | LIT1166730 | Tech Sheet |
|
- | |||||
| 2 | 708532 | Bend, Return Condenser (10) |
|
- | |||||
| 3 | 708531 | Bend, Return Condenser (4) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 1155598 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 1162118 | Tube, Restrictor (3) |
|
- | |||||
| 7 | 1158665 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1160870 | Seal, Suction Tube |
|
- | |||||
| 9 | 1160672 | Bracket, Fan Motor |
|
- | |||||
| 10 | 1166225 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut (Replaces: 1160408) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 602851) |
|
$ 7.47 | |||||
| 13 | 1165217 | Evaporator |
|
- | |||||
| 14 | 950037 | Gasket, Nut |
|
- | |||||
| 15 | 1161247 | Tube, Wet Loop |
|
- | |||||
| 16 | 1161511 | Condenser |
|
- | |||||
| 17 | 1158407 | Bend, Return Condenser (1) |
|
- | |||||
| 18 | 1165776 | Base |
|
- | |||||
| 19 | 1159832 | Divider, Flow |
|
- | |||||
| 20 | 1158689 | Harness, Wiring (compressor Service) |
|
- | |||||
| 21 | 1166237 | Compressor |
|
- | |||||
| 22 | WP950021 | Grommet (3) (Replaces: 950021) |
|
$ 78.99 | |||||
| 23 | 1166239 | Tube, Discharge |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 26 | WP1161170 | Overload (Replaces: 1155605) |
|
$ 84.72 | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | WP950036 | Cover, Terminal (Replaces: 950036) |
|
$ 9.83 | |||||
| 29 | WP950027 | Nut, Terminal Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 30 | 1163783 | Wheel, Blower (evaporator) |
|
$ 70.86 | |||||
| 31 | 1160358 | Tube, Feeder |
|
- | |||||
| 32 | 1163753 | Manifold, Suction |
|
- | |||||
| 33 | 1161071 | Tube, Feeder |
|
- | |||||
| 34 | 1163936 | Suction Tube Assembly |
|
- | |||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 36 | 471088 | Clamp (2) |
|
- | |||||
| 37 | 1158685 | Bend, Return (3-way) |
|
- | |||||
| 38 | 1158652 | Pan, Drain |
|
- | |||||
| 39 | WPY015825 | Clip, Motor (2) (Replaces: 1157015) |
|
$ 22.65 | |||||
| 40 | 1161346 | Cover, Pan |
|
- | |||||
| 41 | 1166782 | Anticipator |
|
- | |||||
| 42 | 642080 | Clip, Anticipator |
|
- | |||||
| 43 | W11236646 | Washer (3) (Replaces: 1160880) |
|
Immediately | $ 13.26 | ||||
| 44 | 1165674 | Bolt, Compressor |
|
- | |||||
| 45 | 998612 | Valve, Condensate |
|
- | |||||
| 46 | 855644 | Bend, Return Evaporator (4) |
|
- | |||||
| 47 | 854624 | Bend, Return Evaporator (4) |
|
- | |||||
| 48 | 855199 | Bend, Return Evaporator (11) |
|
- | |||||
| 49 | 1165765 | Tube, Wet Loop Connect |
|
- |
