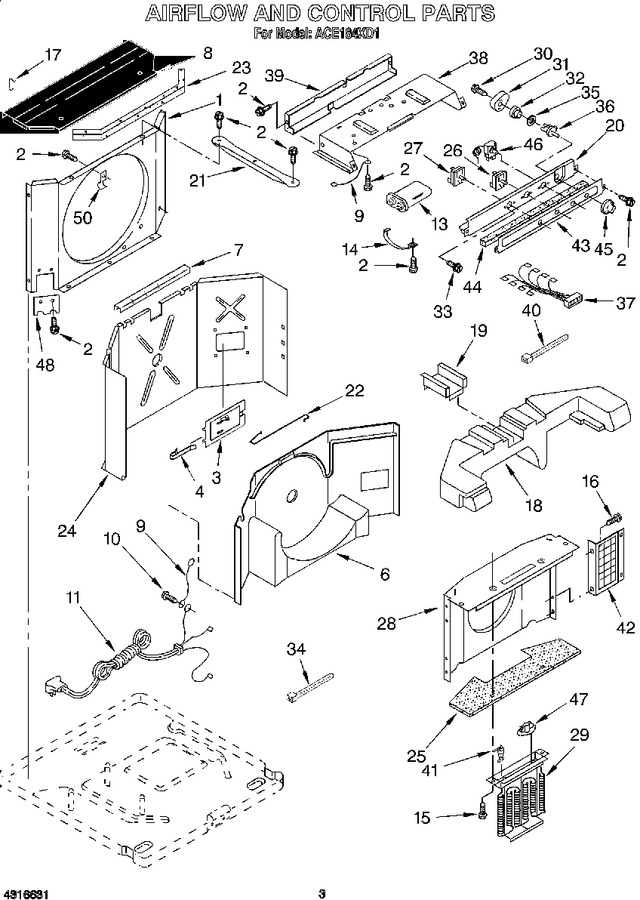

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1161244		Shroud, Condenser		Appelez-nous	-
2	WP489069		Screw, 8 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
3	997221		Door, Exhaust		Appelez-nous	-
4	859369		Spring, Door		Appelez-nous	-
6	1158653		Scroll (lower)		Appelez-nous	-
7	1162200		Grommet, Divider Wall		Appelez-nous	-
8	1157407		Top, Condenser		Appelez-nous	-
9	856094		Wire, Ground		Appelez-nous	-
10	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 6.37
11	1167754		Cord, Appliance		Appelez-nous	-
13	1167531		Capacitor		Appelez-nous	-
14	1167611		Bracket, Capacitor		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
16	1161561		Screw, 8-18 X 3/8		Appelez-nous	-
17	1164511		Clip, Shroud (2)		Appelez-nous	-
18	1158654		Scroll, Upper		Appelez-nous	-
19	1157418		Raceway, Wiring		Appelez-nous	-
20	1160037		Panel, Control		Appelez-nous	-
21	1164561		Support, Unit (2)		Appelez-nous	-
22	1157443		Wire, Control		Appelez-nous	-
23	1158732		Seal, Shroud		Appelez-nous	-
24	1161556		Dividing Wall		Appelez-nous	-
25	1161210		Evap Shroud Seal		Appelez-nous	-
26	1159612		Switch Rotary		Appelez-nous	-
27	1165673		Switch, Rotary		Appelez-nous	-
28	1161347		Shroud Assembly, Evaporator		Appelez-nous	-
29	1161004		Element, Heating		Appelez-nous	-
30	489092		Screw, 7-18 X 5/8		Appelez-nous	-
31	997813		Cam, Exhaust		Appelez-nous	-
32	859233		Bushing, Shaft		Appelez-nous	-
33	488734		Screw, 6-32 X .175		Appelez-nous	-
34	WPW10339879		Cable, Tie   (Replaces: 1159130)				$ 7.47
35	00647881		Washer   (Replaces: 647881)				$ 366.51
36	1158253		Shaft, Control Exhaust		Appelez-nous	-
37	1167526		Harness, Wiring (control Box)		Appelez-nous	-
38	1167612		Box, Control		Appelez-nous	-
39	1156965		Back Panel, Control Box		Appelez-nous	-
40	WPW10339879		Cable Tie   (Replaces: 857547)				$ 7.47
41	1167330		Fuse, Link		Appelez-nous	-
42	1161555		Impeller Guard (2)		Appelez-nous	-
43	1166500		Escutcheon		Appelez-nous	-
44	WP854334		Spacer (2)   (Replaces: 1158066)				$ 12.55
45	1158054		Knob, Controls (4)				$ 5.51
46	1161021		Control, Temperature		Appelez-nous	-
47	1160509		Limit Switch		Appelez-nous	-
48	1161249		Clip, Nylon		Appelez-nous	-
50	1161248		Clip, Wet Loop		Appelez-nous	-
