SELECT A DIAGRAM

1 - Freezer Door

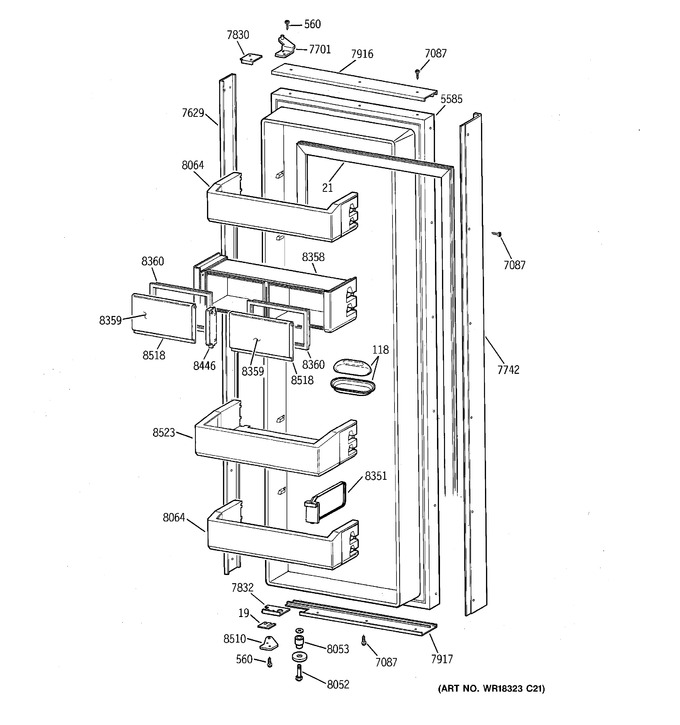

2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Section


5 - Dispenser


6 - Fresh Food Section


7 - Fresh Food Section


8 - Unit Parts


9 - Icemaker Wr30x0327


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	WR2X8589		Shim .060		Appelez-nous	-
19	WR2X8590		Shim .030		Appelez-nous	-
21	WR24X551		Gasket Door Ff White		Appelez-nous	-
118	WR19X35		Dish Butter Asm		Appelez-nous	-
560	WR1X1845		Bolt Hinge		Appelez-nous	-
5585	WR78X8838		Ff O. Door 48"		Appelez-nous	-
7087	WR01X10188		Scr. Trim (self Drilling		Appelez-nous	-
7629	WR17X3016		Trim Door Ff Side		Appelez-nous	-
7701	WR13X633		Hinge Top Ff		Appelez-nous	-
7742	WR12X10329		Handle Ff Door		Appelez-nous	-
7830	WR2X8585		Shim Hinge Top Ff		Appelez-nous	-
7832	WR2X8586		Shim Hinge Btm Ff		Appelez-nous	-
7916	WR17X4155		Trim Door Ff Top		Appelez-nous	-
7917	WR17X4156		Trim Door Ff Btm		Appelez-nous	-
8052	WR01X10184		Bolt Hinge Ff Door Btm.		Appelez-nous	-
8053	WR01X10183		Bushing Ff Door Btm.		Appelez-nous	-
8064	WR71X8064		Bin Ff		Appelez-nous	-
8351	WR2X9400		Divider Module		Appelez-nous	-
8358	WR71X2682		Dairy Module		Appelez-nous	-
8359	WR22X516		Door Dairy		Appelez-nous	-
8360	WR22X517		Frame Dairy Door		Appelez-nous	-
8446	WR2X9401		Divider Dairy/util.42/48		Appelez-nous	-
8510	WR13X10098		Hinge Door Btm. Rh/ff		Appelez-nous	-
8518	WR38X2244		Trim Dairy Door		Appelez-nous	-
8523	WR71X2680		Bin Deep Ff		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
