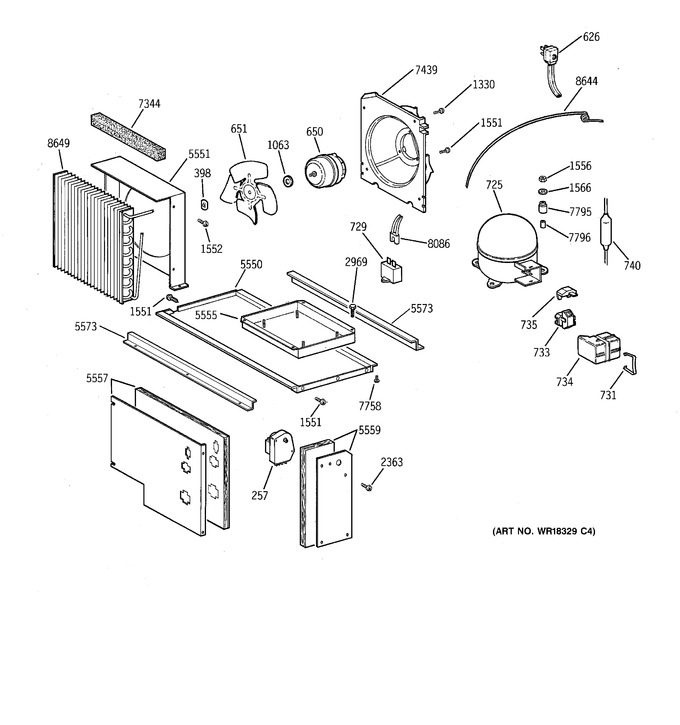

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 257 | WR9X587 | Timer Defrost |
|
- | |||||
| 398 | WR1X1715 | Nut Cond Mtr. |
|
- | |||||
| 626 | WR23X108 | Cord Power Asm |
|
- | |||||
| 650 | WR60X179 | Motor Cond Fan |
|
- | |||||
| 651 | WR60X167 | Fan Blade |
|
- | |||||
| 725 | WR87X464 | Aasm Hi Side Prod Serv |
|
- | |||||
| 729 | WR62X80 | Capacitor |
|
- | |||||
| 731 | WR2X7226 | Clamp-cover |
|
- | |||||
| 733 | WR7X253 | Relay (ptcr) |
|
- | |||||
| 734 | WR2X7834 | Cover Relay |
|
- | |||||
| 735 | WR8X157 | Overload |
|
- | |||||
| 740 | WG03A03157 | Dryer & Filter Asm (Replaces: WR86X96) |
|
Immediately | $ 138.06 | ||||
| 1063 | WR1X1833 | Washer Rubber |
|
- | |||||
| 1330 | WR1X1825 | Screw Cond Hsg |
|
- | |||||
| 1551 | WR1X5645 | Screw Im Strap, Pan |
|
- | |||||
| 1552 | WR29X5175 | Screw Shroud Cond |
|
- | |||||
| 1556 | WR1X1898 | Nut Comp |
|
- | |||||
| 1566 | WR1X5649 | Washer Comp Mtg |
|
- | |||||
| 2363 | WR1X5684 | Screw-housing |
|
- | |||||
| 2969 | WR1X5653 | Screw Pan Hot Gas |
|
- | |||||
| 5550 | WR17X3041 | Pan Refrigerator |
|
- | |||||
| 5551 | WR17X3048 | Shroud Cond |
|
- | |||||
| 5555 | WR17X3043 | Pan Hot Gas |
|
- | |||||
| 5557 | WR17X3044 | Baffle Lh W/fg |
|
- | |||||
| 5559 | WR17X3045 | Baffle Front W/fg |
|
- | |||||
| 5573 | WR2X8610 | Bracket Roller Mtg |
|
- | |||||
| 7344 | WR14X313 | Foam Strip |
|
- | |||||
| 7439 | WR17X3047 | Housing Cond Fan |
|
- | |||||
| 7758 | WR1X1840 | Screw Snack Pan Support |
|
- | |||||
| 7795 | WR2X7238 | Grommet Comp Mtg |
|
- | |||||
| 7796 | WR1X5648 | Steel Collar |
|
- | |||||
| 8086 | WR23X474 | Harness Capacitor |
|
- | |||||
| 8644 | WR86X105 | Suction & Capillary Tube |
|
- | |||||
| 8649 | WR84X212 | Condenser Asm |
|
- |
