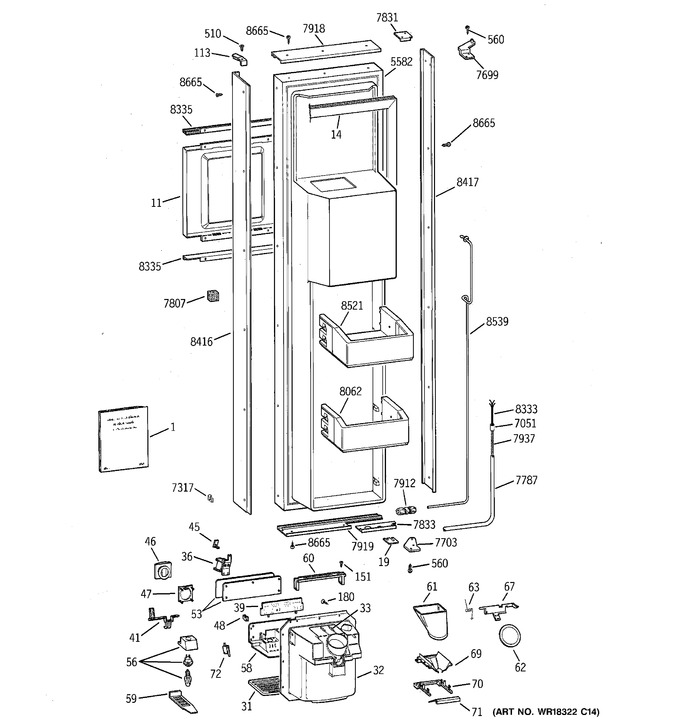

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-5246 | Monogram Service Manual |
|
- | |||||
| 1 | 31-51046 | Technical Data Sheet |
|
- | |||||
| 1 | 49-6858 | Use & Care Manual |
|
- | |||||
| 11 | WR38X2248 | Trim Recess Disp Bk |
|
- | |||||
| 14 | WR24X573 | Gasket Door Frz |
|
- | |||||
| 19 | WR2X8589 | Shim .060 |
|
- | |||||
| 19 | WR2X8590 | Shim .030 |
|
- | |||||
| 31 | WR17X3366 | Grille Recess Bk |
|
$ 11.50 | |||||
| 32 | WR17X3335 | Recess Disp Bk |
|
- | |||||
| 33 | WR51X353 | Heater Recess |
|
- | |||||
| 36 | WR62X78 | Solenoid Asm |
|
- | |||||
| 39 | WR55X129 | Module Time Delay |
|
- | |||||
| 41 | WR17X3493 | Cradle Actuator |
|
- | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 46 | WG03A00194 | Pad Actuator Bk (Replaces: WR2X8702) |
|
$ 15.72 | |||||
| 47 | WR2X8681 | Support Actuator Pad Bk |
|
- | |||||
| 48 | WR2X8676 | Knob Recess Disp Bk |
|
- | |||||
| 53 | WR17X4216 | Nameplate & Label Asm |
|
- | |||||
| 56 | STD372071 | Lamp 7c7 |
|
- | |||||
| 58 | WR17X3156 | Shield Recess Disp Bk |
|
- | |||||
| 59 | WR2X8662 | Socket Lamp |
|
- | |||||
| 60 | WR2X8685 | Cover Elect |
|
- | |||||
| 61 | WR2X8591 | Ice Chute |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X3093) |
|
$ 58.69 | |||||
| 63 | WR2X8663 | Spring Recess Door |
|
- | |||||
| 67 | WR17X3089 | Crank Door Recess |
|
- | |||||
| 69 | WR17X3095 | Funnel Recess Shield Bk |
|
- | |||||
| 70 | WR2X8943 | Supt. Funnel & Guard Bk |
|
- | |||||
| 71 | WR17X3478 | Deflector Ice Bk |
|
- | |||||
| 72 | WG03L00633 | Switch Cradle Actuator (Replaces: WR23X366) |
|
$ 58.69 | |||||
| 113 | WR12X864 | End Cap Frz/top Ff/btm |
|
- | |||||
| 151 | WR1X1554 | Screw |
|
- | |||||
| 180 | WR1X1966 | Scr 6-22 Pl Ihw 3/8 |
|
- | |||||
| 510 | WR1X2129 | Screw Handle Trim |
|
- | |||||
| 560 | WR1X1845 | Bolt Hinge |
|
- | |||||
| 5582 | WR78X8837 | Fz O. Door 48" |
|
- | |||||
| 7051 | WR2X8810 | Plug Elect Harness |
|
- | |||||
| 7317 | WR17X3046 | Clamp Nylon 1/4" |
|
- | |||||
| 7699 | WR13X635 | Hinge Top Fz |
|
- | |||||
| 7703 | WR13X636 | Hinge Btm & Pin Asm Fz |
|
- | |||||
| 7787 | WR2X8808 | Sleeve Harness |
|
- | |||||
| 7807 | WR2X8798 | Pad Spacer (20) |
|
- | |||||
| 7831 | WR2X8592 | Shim Hinge Top Fz |
|
- | |||||
| 7833 | WR2X8593 | Shim Hinge Btm Fz |
|
- | |||||
| 7912 | WR2X7223 | Nut & Union Asm |
|
- | |||||
| 7918 | WR17X4162 | Trim Door Fz Top |
|
- | |||||
| 7919 | WR17X3450 | Trim Door Fz Bottom |
|
- | |||||
| 7937 | WR2X8809 | Sleeve Exp |
|
- | |||||
| 8062 | WR71X2723 | Bin 36" Ff / 48" Frz Asm |
|
- | |||||
| 8333 | WR23X476 | Door Harness |
|
- | |||||
| 8335 | WR17X4159 | Trim Support |
|
- | |||||
| 8416 | WR12X1051 | Handle Fz Door |
|
- | |||||
| 8417 | WR17X3020 | Trim Door Fz Side |
|
- | |||||
| 8521 | WR71X2678 | Bin Fz |
|
- | |||||
| 8539 | WR2X9414 | Water Tube |
|
- | |||||
| 8665 | WG03A00448 | Screw Trim Door (Replaces: WR1X2130) |
|
$ 4.20 |
