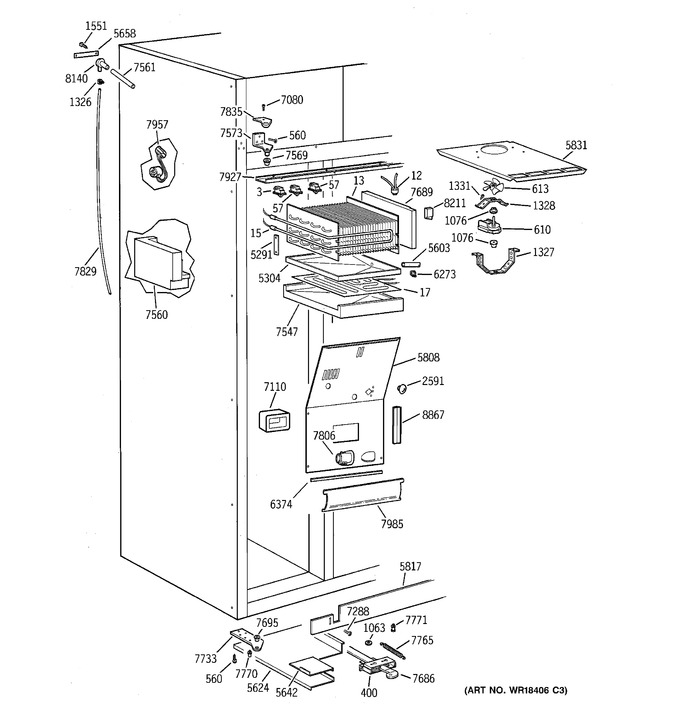

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WR23X411 | Switch Light 200 Watt |
|
- | |||||
| 12 | WR50X109 | Defrost Thermostat |
|
- | |||||
| 13 | WR85X223 | Evaporator |
|
- | |||||
| 15 | WR51X322 | Defrost Heater |
|
- | |||||
| 17 | WG03F00351 | Heater Drain Pan (Replaces: WR51X321) |
|
$ 395.89 | |||||
| 57 | WR23X192 | Switch-cradle-water Side |
|
- | |||||
| 400 | WR2X9468 | Closure Fz Door |
|
- | |||||
| 560 | WR1X1845 | Bolt Hinge |
|
- | |||||
| 610 | GEFM | Motor Evap Fan (Replaces: WR60X182) |
|
Immediately | $ 106.65 | ||||
| 613 | WR60X123 | Fan Blade Evap Motor |
|
- | |||||
| 1063 | WR1X1833 | Washer Rubber |
|
- | |||||
| 1076 | WR2X7391 | Grommet Evap Fan Mtr |
|
- | |||||
| 1326 | WR2X3736 | Clamp Tube |
|
- | |||||
| 1327 | WR2X8806 | Bracket Fan Rear |
|
- | |||||
| 1328 | WR2X8805 | Bracket Fan Front |
|
- | |||||
| 1331 | WZ06X0133 | Screw Brkt Evap Fan |
|
- | |||||
| 1551 | WR1X5645 | Screw Im Strap, Pan |
|
- | |||||
| 2591 | WR1X1932 | Plug Button Fz Rear Duct |
|
- | |||||
| 5291 | WR2X8619 | Bracket Def Heater |
|
- | |||||
| 5304 | WR17X3038 | Pan Evap Drain |
|
- | |||||
| 5603 | WR17X3030 | Tube Drain |
|
- | |||||
| 5624 | WR17X3423 | Pan Umbilical Large |
|
- | |||||
| 5642 | WR17X3424 | Pan Umbilical Small |
|
- | |||||
| 5658 | WR2X8613 | Strap Im Grommet |
|
- | |||||
| 5808 | WR17X10012 | Rear Duct Fz Disp 48 |
|
- | |||||
| 5817 | WR74X237 | Kickplate Disp |
|
- | |||||
| 5831 | WR17X4272 | Evap. Housing Btm |
|
- | |||||
| 6273 | WR1X1843 | Clamp |
|
- | |||||
| 6374 | WR38X2022 | Trim Frz Rear Duct Btm |
|
- | |||||
| 7080 | WR1X1933 | Screw Hinge Cover |
|
- | |||||
| 7110 | WR14X450 | Motor Air Seal |
|
- | |||||
| 7288 | WR1X1831 | Screw Toe-kick Mtg |
|
- | |||||
| 7547 | WR17X3037 | Baffle Evap Foam |
|
- | |||||
| 7560 | WR17X3039 | Baffle Evap |
|
- | |||||
| 7561 | WR2X8612 | Fill Tube Icemaker |
|
- | |||||
| 7569 | WR2X8587 | Bushing Top Hinge |
|
- | |||||
| 7573 | WR13X640 | Hinge Fz Top |
|
- | |||||
| 7686 | WR2X8926 | Actuator Arm Fz |
|
- | |||||
| 7689 | WR17X3040 | Baffle Ff |
|
- | |||||
| 7695 | WR2X8588 | Bushing Btm Hinge |
|
- | |||||
| 7733 | WR13X641 | Hinge Fz Btm |
|
- | |||||
| 7765 | WR2X8804 | Spring Closure |
|
- | |||||
| 7770 | WG03F00556 | Stop Door (Replaces: WR13X637) |
|
$ 1,717.19 | |||||
| 7771 | WR1X1839 | Bushing Hinge Spring Asm |
|
- | |||||
| 7806 | WR2X8928 | Light Socket |
|
- | |||||
| 7829 | WG03F00660 | Water Line (Replaces: WR17X2107) |
|
$ 12.40 | |||||
| 7835 | WR13X638 | Cover Fz Hinge |
|
- | |||||
| 7927 | WR17X3896 | Disp Grill Base |
|
- | |||||
| 7957 | WR51X369 | Fill Tube Heater |
|
- | |||||
| 7985 | WR17X3441 | Fz Light Shield |
|
- | |||||
| 8140 | WR2X9466 | Grommet Waterfill |
|
- | |||||
| 8211 | WR2X9301 | Elut Extension |
|
- | |||||
| 8867 | WR14X10001 | Gasket Rear Duct |
|
- |
