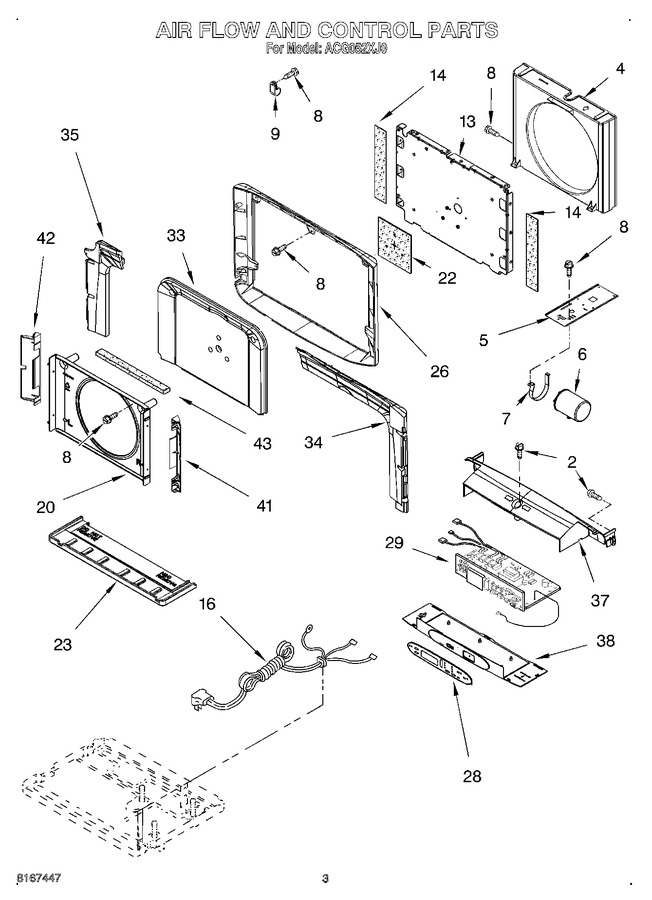

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8040200		Screw, 7-19 X .375		Appelez-nous	-
4	8040003		Shroud, Condenser		Appelez-nous	-
5	8040009		Support, Unit		Appelez-nous	-
6	8040189		Capacitor, Running		Appelez-nous	-
7	8040100		Bracket, Capacitor		Appelez-nous	-
8	8040303		Screw,		Appelez-nous	-
9	1180752		Relief, Strain		Appelez-nous	-
13	8040006		Wall, Dividing		Appelez-nous	-
14	8040284		Insulation, Dividing Wall		Appelez-nous	-
16	8040043		Cord, Appliance		Appelez-nous	-
20	8040011		Shroud, Evaporator		Appelez-nous	-
22	8040165		Insulation, Motor Gasket		Appelez-nous	-
23	8040015		Pan, Drain		Appelez-nous	-
26	8040171		Collar, Front Mounting		Appelez-nous	-
28	8040103		Overlay		Appelez-nous	-
29	8040112		Circuit Board Assembly		Appelez-nous	-
33	8040010		Insulation, Center Dividing Wall		Appelez-nous	-
34	8040012		Insulation, Right Side		Appelez-nous	-
35	8040337		Insulation, Left Side		Appelez-nous	-
37	8040299		Top Enclosure Assembly		Appelez-nous	-
38	8040298		Bottom Enclosure Assembly		Appelez-nous	-
41	8040166		Shroud Extension, Right Side		Appelez-nous	-
42	8040167		Shroud Extension, Left Side		Appelez-nous	-
43	8040279		Seal		Appelez-nous	-
