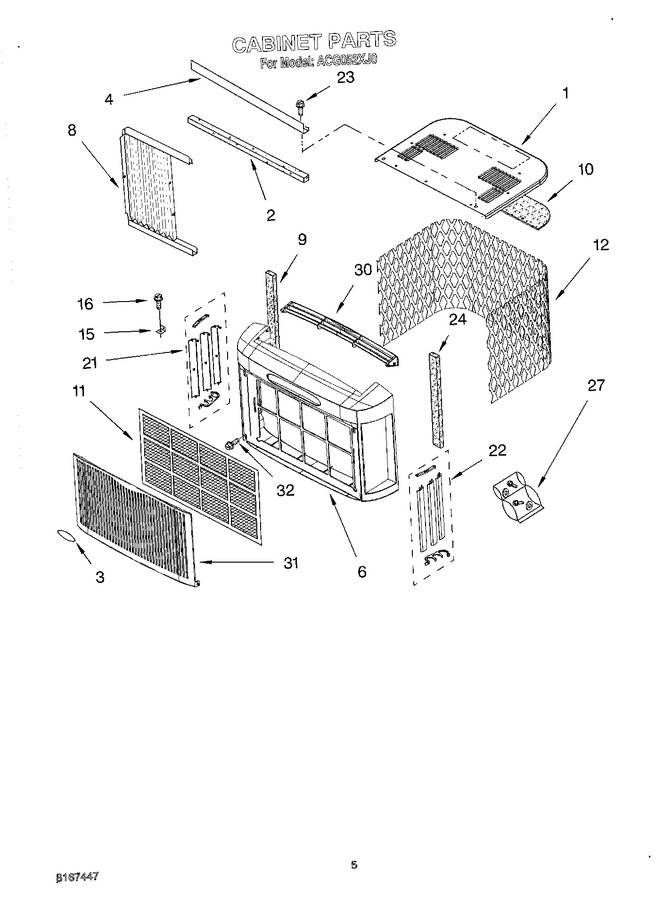

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8040019		Top Cover		Appelez-nous	-
2	8040336		Gasket, Meeting Rail		Appelez-nous	-
3	8040150		Nameplate		Appelez-nous	-
4	8040095		Channel, Top		Appelez-nous	-
6	8040075		Front, Cabinet		Appelez-nous	-
7	WP489069		Screw   (Replaces: 488480)			Immediately	$ 7.56
8	1183836		Curtain (r.s.)		Appelez-nous	-
8	1183837		Curtain (l.s.)		Appelez-nous	-
9	8040278		Seal		Appelez-nous	-
10	8040216		Insulation, Top		Appelez-nous	-
11	8040088		Filter, Woven		Appelez-nous	-
12	8040020		Rear Grille		Appelez-nous	-
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw		Appelez-nous	-
21	4388703		Louver, Assembly Left		Appelez-nous	-
22	4388704		Louver, Assembly Right		Appelez-nous	-
23	1161561		Screw		Appelez-nous	-
24	8040259		Seal, Header Plate		Appelez-nous	-
27	8040339		Bag, Accessory		Appelez-nous	-
30	8040194		Louver, Top		Appelez-nous	-
31	8040190		Front Grille		Appelez-nous	-
32	8171429		Condensate, Drain Kit		Appelez-nous	-
32	8040199		Screw, Front		Appelez-nous	-
32	8171428		Remote Control		Appelez-nous	-
