1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Unit Parts


5 - Ice Maker

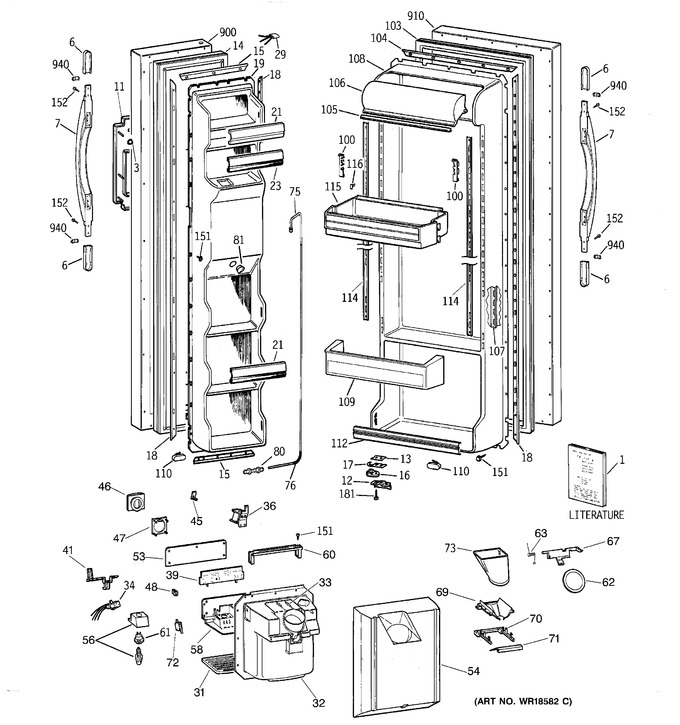

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-45889		Pm Mini Manual Wiring		Appelez-nous	-
1	49-6977		Pm Guide Owners Efs		Appelez-nous	-
3	WR2X8669		Fastener Tubular		Appelez-nous	-
6	WR12X10205		Tail Handle Sxs Ad		Appelez-nous	-
7	WR12X10331		Handle Sxs Ad		Appelez-nous	-
11	WR38X10131		Trim Recess Disp Ad		Appelez-nous	-
12	WR2X9302		Stop Door Ad		Appelez-nous	-
13	WG03L01596		Shim Cam Door Stop   (Replaces: WR2X7490)				$ 12.40
14	WR24X525		Gasket Door Frz Wh		Appelez-nous	-
15	WR17X1167		Retainer Strip		Appelez-nous	-
16	WG03F00083		Hinge Cam Riser   (Replaces: WR02X10140)				$ 11.44
17	WR2X9147		Shim Riser Cam .093		Appelez-nous	-
17	WR2X7491		Shim Riser Cam .031		Appelez-nous	-
18	WR17X2092		Retainer Strip		Appelez-nous	-
19	WR77X680		Door Inner Fz		Appelez-nous	-
21	WR17X4038		Front Door Shelf		Appelez-nous	-
23	WR17X4039		Front Door Shelf		Appelez-nous	-
29	WR23X10125		Harness Dr Hinge Fz		Appelez-nous	-
31	WR17X4151		Grille Recess Ad		Appelez-nous	-
32	WR17X10191		Recess Disp Ad		Appelez-nous	-
33	WR51X420		Heater Recess		Appelez-nous	-
34	WR23X456		Harness Light Sw.		Appelez-nous	-
36	WR62X94		Solenoid Asm		Appelez-nous	-
39	WR55X129		Module Time Delay		Appelez-nous	-
41	WR17X3493		Cradle Actuator		Appelez-nous	-
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
46	WG03A00194		Pad Actuator Ad   (Replaces: WR2X8726)				$ 15.72
47	WR2X8681		Support Actuator Pad Bk		Appelez-nous	-
48	WR2X9154		Knob Recess Disp Ad		Appelez-nous	-
53	WR17X10061		Nameplate Recess Ad		Appelez-nous	-
54	WR17X4254		Insulation Recess		Appelez-nous	-
56	STD372071		Lamp 7c7		Appelez-nous	-
56	WR2X8686		Reflector Lamp Socket		Appelez-nous	-
58	WR17X3210		Shield Recess Disp Ad		Appelez-nous	-
60	WR2X8685		Cover Elect		Appelez-nous	-
61	WR2X9561		Socket Lamp E12		Appelez-nous	-
62	WR01L01914		Door Recess Asm   (Replaces: WR17X3093)				$ 58.69
63	WR2X8663		Spring Recess Door		Appelez-nous	-
67	WR17X3089		Crank Door Recess		Appelez-nous	-
69	WR17X3095		Funnel Recess Shield Bk		Appelez-nous	-
70	WR2X8956		Supt. Funnel Guard Ad		Appelez-nous	-
71	WR17X10282		Deflector Ice Bk		Appelez-nous	-
72	WG03L00633		Switch Cradle Actuator   (Replaces: WR23X366)				$ 58.69
73	WR17X4253		Chute Ice		Appelez-nous	-
75	WR17X3670		Grommet Tube Asm		Appelez-nous	-
76	WR2X8933		Sleeve Water Line		Appelez-nous	-
80	WG03A00026		Nut & Union Asm   (Replaces: WR2X8545)				$ 15.72
81	WR1X2077		Plug Button		Appelez-nous	-
100	WR2X8410		Hook Module L/s		Appelez-nous	-
100	WR2X8409		Hook Module R/s		Appelez-nous	-
103	WR24X526		Gasket Door Ff Wh		Appelez-nous	-
104	WR17X1168		Retainer Strip		Appelez-nous	-
105	WR38X2259		Trim Dairy Door		Appelez-nous	-
106	WR22X383		Door Dairy		Appelez-nous	-
107	WR72X256		Track Door Inner		Appelez-nous	-
108	WR77X681		Door Inner Ff		Appelez-nous	-
108	WR1X1718		Screw 6-20 Ab Pa 1/2 Ss		Appelez-nous	-
109	WR71X2715		Shelf Door Removable Asm		Appelez-nous	-
110	WR2X8989		Support Twist Bumper		Appelez-nous	-
112	WR17X10466		Front Door Shelf		Appelez-nous	-
114	WR72X257		Track Door Shelf		Appelez-nous	-
115	WR71X2714		Shelf Door Module Asm		Appelez-nous	-
116	WR2X7829		Cap Door Track		Appelez-nous	-
151	WR1X1554		Screw 8-18 Ab Ihw 9/16 S		Appelez-nous	-
152	WR01A01241		Scr 8-18 Ab Fltr 5/8 S   (Replaces: WR01X10038)				$ 3.57
181	WR01X10161		Scr 10-32 Gx Ihxw 13/16s		Appelez-nous	-
900	WR78X10199		Door Foam Asm Fz Ad		Appelez-nous	-
910	WR78X10200		Door Foam Asm Ff Ad		Appelez-nous	-
940	WR02X10124		Bracket Handle		Appelez-nous	-
