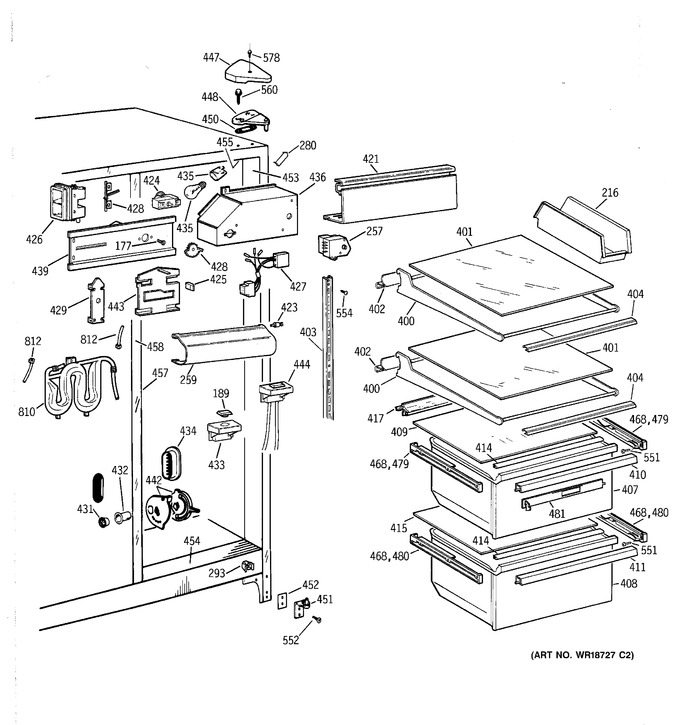

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 177 | WR1X5034 | Screw 8-18 A Hx 1/2 S |
|
- | |||||
| 189 | WR1X2115 | Plug Button |
|
- | |||||
| 216 | WR32X1575 | Bucket Utility Clr |
|
- | |||||
| 257 | WG04F00202 | Control Defrost (Replaces: WR9X489) |
|
Immediately | $ 76.65 | ||||
| 259 | WR17X3909 | Shield Light Lower Ff |
|
- | |||||
| 280 | WR2X8519 | Cap Corner Oc (ad) |
|
- | |||||
| 293 | WR2X7080 | Clip-o. Case-end Cap |
|
- | |||||
| 400 | WR71X2292 | Shelf Cant |
|
- | |||||
| 401 | WR32X1533 | Shelf Cant Glass |
|
- | |||||
| 402 | WR38X2214 | Reflector Glass Shelf |
|
- | |||||
| 403 | WR72X254 | Track Cant Shelf |
|
- | |||||
| 404 | WR38X2216 | Trim Glass Shelf |
|
- | |||||
| 407 | WR32X1492 | Veg Pan Upper |
|
- | |||||
| 408 | WR32X1493 | Veg Pan Lower |
|
- | |||||
| 409 | WR32X1530 | Cover Pan Glass |
|
- | |||||
| 410 | WR17X4104 | Handle Pan |
|
- | |||||
| 411 | WR17X4105 | Handle Pan |
|
- | |||||
| 414 | WR14X431 | Gasket Pan Cover Frt |
|
- | |||||
| 415 | WR32X1473 | Cover Pan Glass |
|
- | |||||
| 417 | WR17X10506 | Gasket Shield Lower |
|
- | |||||
| 421 | WR17X4124 | Shield Light Ff |
|
- | |||||
| 423 | WR2X6347 | Support Shield Top |
|
- | |||||
| 423 | WR02X10050 | Grommet Suppt Lt Shield |
|
- | |||||
| 424 | WR9X570 | Control Temp |
|
- | |||||
| 425 | WR2X8398 | Knob Control |
|
- | |||||
| 426 | WR2X8514 | Housing Nozzle |
|
- | |||||
| 426 | WR2X8425 | Insul Foam Nozzle |
|
- | |||||
| 427 | WR23X469 | Harness Control Mod |
|
- | |||||
| 428 | WR2X9396 | Control Damper |
|
- | |||||
| 428 | WR2X8513 | Gear Control Temp |
|
- | |||||
| 429 | WR2X8516 | Slide Damper |
|
- | |||||
| 431 | WR2X9299 | Cap Mullion Duct |
|
- | |||||
| 432 | WR2X8654 | Duct Mullion |
|
- | |||||
| 433 | WR2X9239 | Housing Lamp Socket |
|
- | |||||
| 434 | WR2X9431 | Duct Air Return Asm Ff |
|
- | |||||
| 435 | STD372402 | Lamp 40 W |
|
- | |||||
| 435 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 7.51 | |||||
| 436 | WR2X7736 | Bracket Control Mod |
|
- | |||||
| 439 | WR17X2922 | Channel Control |
|
- | |||||
| 442 | WR02X10042 | Control Meat Pan Asm |
|
- | |||||
| 443 | WR2X8570 | Rack Control Temp |
|
- | |||||
| 444 | WR17X10550 | Housing Light Lwr Asm |
|
- | |||||
| 447 | WR2X8844 | Cover Hinge Fz Ad |
|
- | |||||
| 447 | WR2X8843 | Cover Hinge Ff Ad |
|
- | |||||
| 448 | WR13X10058 | Hinge Top Asm Ff |
|
- | |||||
| 450 | WR2X4194 | Shim Hinge Top |
|
- | |||||
| 451 | WG03L00144 | Hinge Btm Pin & Cam Asm (Replaces: WR13X10020) |
|
Immediately | $ 72.68 | ||||
| 452 | WR2X4497 | Shim Hinge Btm .031 |
|
- | |||||
| 452 | WR2X7011 | Shim Hinge Btm. .062 |
|
- | |||||
| 453 | WR40X1734 | Breaker Strip R/s Ff |
|
- | |||||
| 454 | WR40X1735 | Breaker Strip Btm Ff |
|
- | |||||
| 455 | WR40X1736 | Breaker Strip Top Ff |
|
- | |||||
| 457 | WR40X10029 | Breaker Strip L/s Ff |
|
- | |||||
| 458 | WR40X1740 | Mullion Ad |
|
- | |||||
| 458 | WR02X10334 | Clip Mullion Btm |
|
- | |||||
| 458 | WR2X9376 | Bracket Mullion Top |
|
- | |||||
| 468 | WR1X2048 | Bearing Slide Lh |
|
- | |||||
| 479 | WR01F03334 | Slide Asm Lh (Replaces: WR72X239) |
|
$ 100.56 | |||||
| 479 | WR01F03335 | Slide Asm Rh (Replaces: WR72X240) |
|
$ 78.51 | |||||
| 480 | WR72X252 | Slide Asm Lh |
|
- | |||||
| 480 | WR72X253 | Slide Asm Rh |
|
- | |||||
| 481 | WR1X2079 | Slide Pan Front |
|
- | |||||
| 551 | WZ04X0244 | Scr 8-18 Ab Rndw 5/8 Ss |
|
- | |||||
| 552 | WR01X10034 | Scr 12-24 Tt Ih .975 S |
|
- | |||||
| 554 | WR1X2141 | Scr 10-24 Tr Hxw I S |
|
- | |||||
| 560 | WR1X2140 | Screw |
|
- | |||||
| 578 | WZ02X0464 | Screw 8-32 X 3/8 |
|
- | |||||
| 810 | WR17X10507 | Water Tank Disp Asm |
|
- | |||||
| 812 | WG03F00482 | Tube Plastic (Replaces: WR17X2891) |
|
Immediately | $ 35.73 |
