SELECT A DIAGRAM

01 - Unit, Literature


02 - Air Flow And Control


03 - Cabinet


04 - Optional

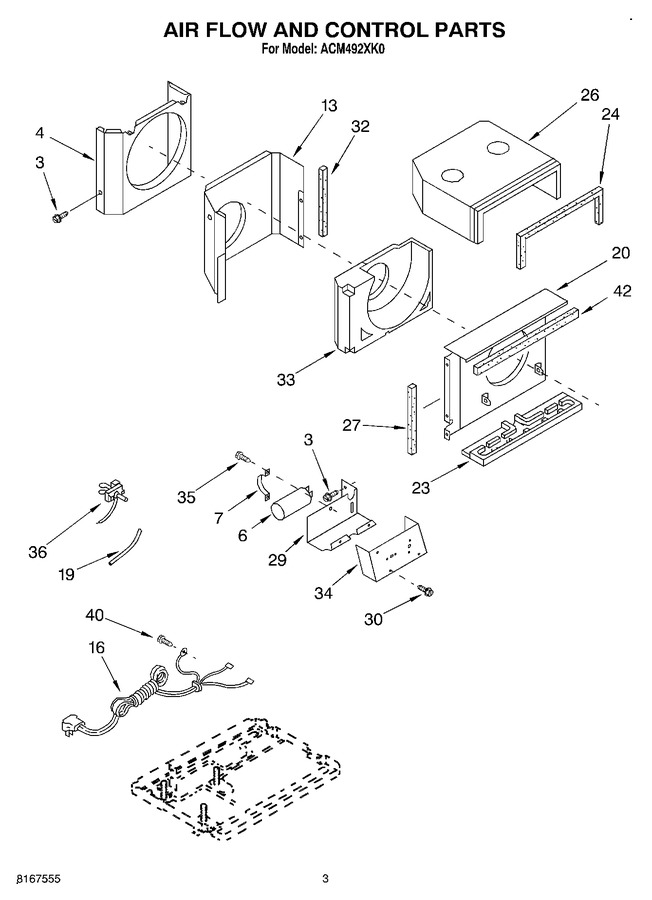

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
4	8011266		Shroud, Condenser		Appelez-nous	-
6	1162595		Capacitor, Running		Appelez-nous	-
7	1167611		Bracket, Capacitor		Appelez-nous	-
13	8011422		Wall, Dividing		Appelez-nous	-
16	8011105		Cord, Appliance		Appelez-nous	-
19	8011238		Sleeve, Insulating		Appelez-nous	-
20	8011265		Shroud, Evaporator		Appelez-nous	-
23	8011133		Pan, Evaporator		Appelez-nous	-
24	1181735		Seal Hood, Front		Appelez-nous	-
26	8011401		Hood, Air Housing		Appelez-nous	-
27	8011399		Seal, Left Side		Appelez-nous	-
29	8011188		Box, Control		Appelez-nous	-
30	488734		Screw, 6-32 X .175		Appelez-nous	-
32	WP854334		Seal, Side   (Replaces: 1158850)				$ 12.55
33	8011400		Housing, Air		Appelez-nous	-
34	8031113		Panel, Control		Appelez-nous	-
35	1159222		Screw		Appelez-nous	-
36	8031115		Control, Temp.				$ 131.31
40	1159222		Screw		Appelez-nous	-
42	1158515		Seal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
