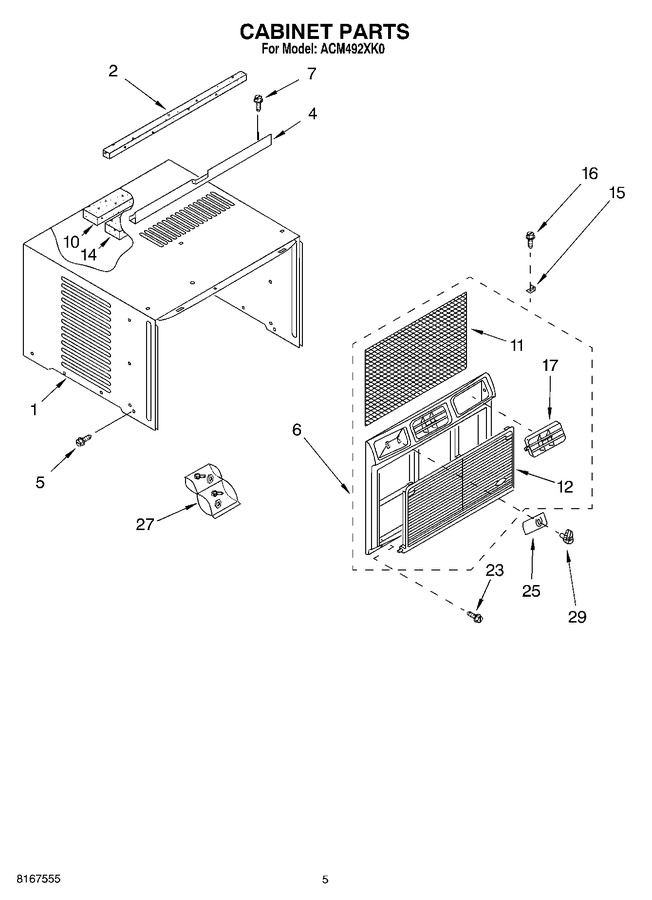

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8011107		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
4	8011307		Channel, Top		Appelez-nous	-
5	WP489069		Screw, 8-15 X 1/2 (8)   (Replaces: 488480)			Immediately	$ 7.56
6	1185317		Front, Cabinet Assembly		Appelez-nous	-
7	WP308685		Screw, (2)   (Replaces: 488720)			Immediately	$ 7.08
10	8011385		Insulation, Top		Appelez-nous	-
11	8011102		Filter		Appelez-nous	-
12	1185319		Grille, Front		Appelez-nous	-
14	8011386		Foam, Condenser		Appelez-nous	-
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw, 8 X 3/4		Appelez-nous	-
17	1185320		Louver, Assembly		Appelez-nous	-
23	1161561		Screw, (2)		Appelez-nous	-
25	1185314		Escutcheon		Appelez-nous	-
27	476180		Bag, Accessory		Appelez-nous	-
29	8031121		Knob				$ 29.99

    View Diagram in Separate Window       Print Part List
