SELECT A DIAGRAM

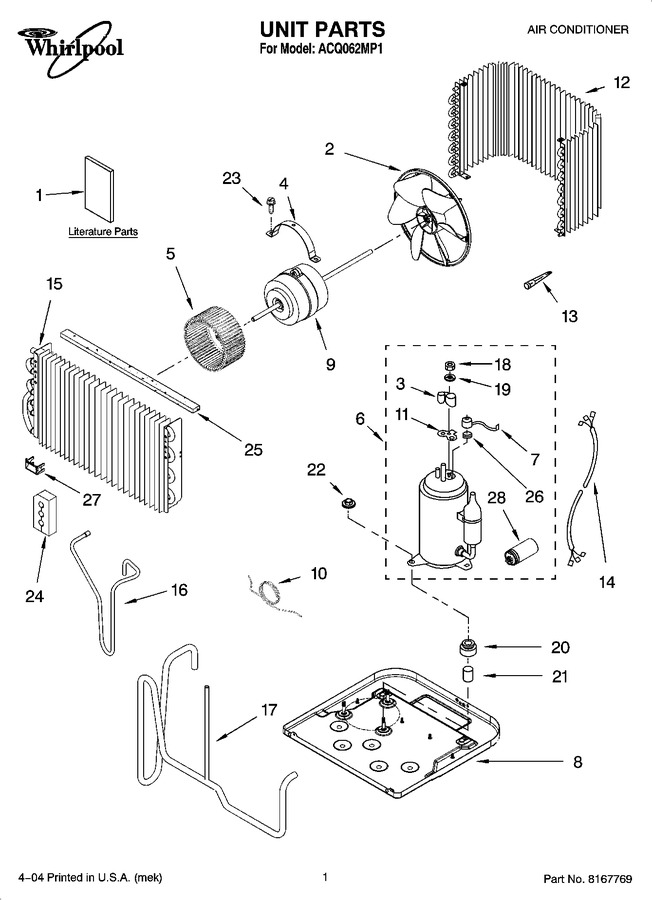

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4312640		Literature Parts (wiring Diagram Label)		Appelez-nous	-
1	LIT8209184		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8209185		Literature Parts (guide, Energy)		Appelez-nous	-
2	8040030		Fan, Condenser				$ 16.49
3	1185792		Cover, Terminal		Appelez-nous	-
4	4312602		Clip, Fan Motor		Appelez-nous	-
5	4312606		Wheel, Blower				$ 11.97
6	4312609		Compressor		Appelez-nous	-
7	4312650		Overload		Appelez-nous	-
8	4312618		Base		Appelez-nous	-
9	326032377		Motor, Fan		Appelez-nous	-
10	4312653		Tube, Capillary		Appelez-nous	-
11	1185793		Gasket, Terminal Cover		Appelez-nous	-
12	4312633		Condenser		Appelez-nous	-
13	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
14	4312649		Harness, Wiring		Appelez-nous	-
15	4312596		Evaporator		Appelez-nous	-
16	4312654		Tube, Discharge		Appelez-nous	-
17	4312655		Tube, Suction		Appelez-nous	-
18	W10833054		Nut   (Replaces: 1186030)		Appelez-nous	-
19	1185794		Washer		Appelez-nous	-
20	950212		Grommet		Appelez-nous	-
21	326027757		Sleeve, Compressor Grommet		Appelez-nous	-
22	8040096		Locknut		Appelez-nous	-
23	8040199		Screw		Appelez-nous	-
24	4312660		Insulator, Tube		Appelez-nous	-
25	WP854334		Seal   (Replaces: 4312605)				$ 12.55
26	950032		Spring, Overload		Appelez-nous	-
27	4312600		Clip, Anticipator		Appelez-nous	-
28	1162599		Capacitor For Service Compressor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
