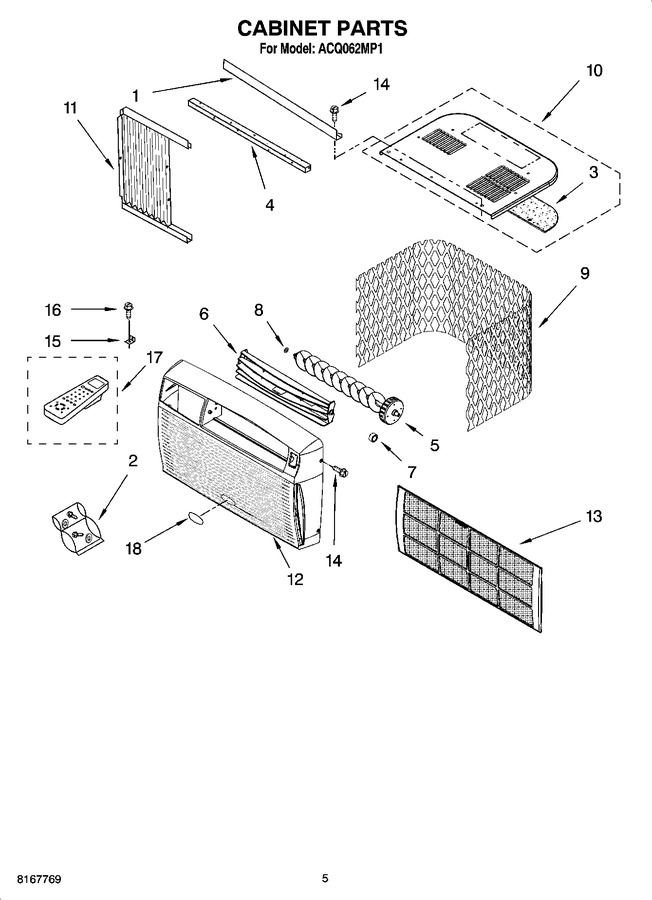

SELECT A DIAGRAM

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8040095		Top Channel		Appelez-nous	-
2	8040339		Bag, Accessory		Appelez-nous	-
3	8040216		Insulation, Top		Appelez-nous	-
4	8040336		Gasket, Meeting Rail		Appelez-nous	-
5	4312597		Louver Assembly, Vertical		Appelez-nous	-
6	4312598		Louver, Horizontal		Appelez-nous	-
7	326019585		Bushing, Horizontal Louver		Appelez-nous	-
8	4312601		Washer		Appelez-nous	-
9	326033103		Grille, Rear		Appelez-nous	-
10	4312661		Cover, Top		Appelez-nous	-
11	4312627		Curtain Assembly (right Side)		Appelez-nous	-
11	4312628		Curtain Assembly (left Side)		Appelez-nous	-
12	326032385		Front, Cabinet		Appelez-nous	-
13	4312648		Filter, Woven		Appelez-nous	-
14	8040200		Screw		Appelez-nous	-
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw		Appelez-nous	-
17	4312641		Control, Remote		Appelez-nous	-
18	326031759		Nameplate		Appelez-nous	-
18	8171429		Condensate, Drain Kit		Appelez-nous	-
