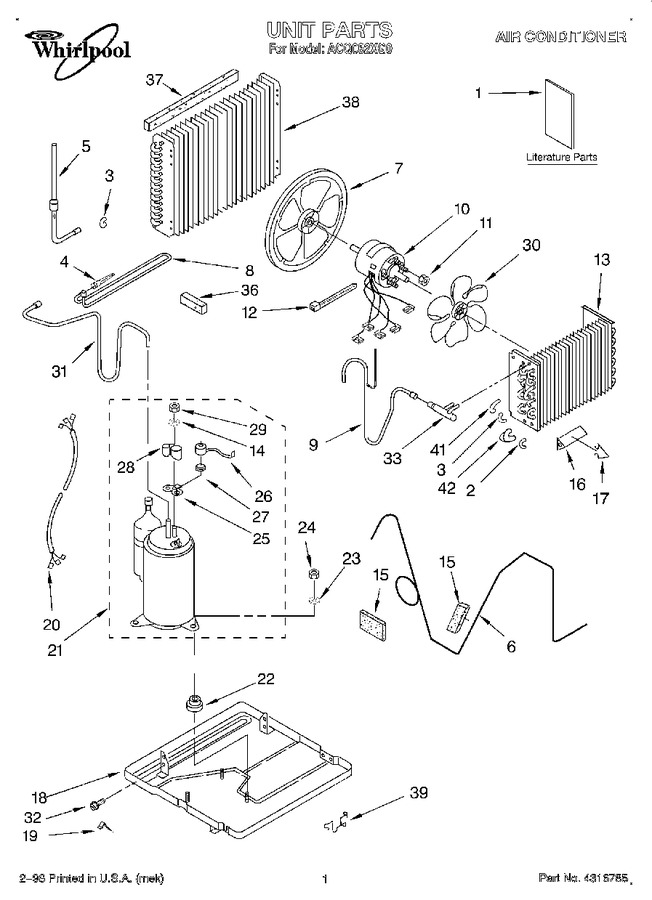

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1172258 | Wiring Diagram |
|
- | |||||
| 1 | LIT1172397 | Owners Manual |
|
- | |||||
| 1 | LIT1172390 | Tech Sheet |
|
- | |||||
| 2 | 708531 | Bend, Return Evaporator (5) |
|
- | |||||
| 3 | 708532 | Bend, Return Condenser (13) Evaporator (6) |
|
- | |||||
| 4 | WP1162526 | Strainer, Tube (Replaces: 1162526) |
|
$ 75.98 | |||||
| 5 | 1168423 | Tube, Process |
|
- | |||||
| 6 | 1168427 | Tube, Restrictor |
|
- | |||||
| 7 | 1161594 | Blade, Fan |
|
- | |||||
| 8 | 1182035 | Tube, Wet Loop |
|
- | |||||
| 9 | 1163931 | Tube, Suction |
|
- | |||||
| 10 | 1172021 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 13 | 1169767 | Evaporator |
|
- | |||||
| 14 | 950037 | Gasket, Nut |
|
- | |||||
| 15 | 1166927 | Seal, Anti-rub |
|
- | |||||
| 16 | 1166782 | Anticipator, Temperature |
|
- | |||||
| 17 | 642080 | Clip, Anticipator |
|
- | |||||
| 18 | 951570 | Base |
|
- | |||||
| 19 | 855930 | Clamp, Restrictor Tube |
|
- | |||||
| 20 | 484136 | Harness, Wiring (compressor Service) |
|
- | |||||
| 21 | 4317916 | Compressor (Replaces: 1158043) |
|
- | |||||
| 22 | 950212 | Grommet (3) |
|
- | |||||
| 23 | 489108 | Washer (3) |
|
- | |||||
| 24 | 858122 | Locknut (3) |
|
- | |||||
| 25 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 26 | WP1161170 | Overload (Replaces: 1161170) |
|
$ 84.72 | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | WP950036 | Cover, Terminal (Replaces: 950213) |
|
$ 9.83 | |||||
| 29 | WP950027 | Nut, Terminal Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 30 | 1160946 | Blade, Fan (evaporator) |
|
- | |||||
| 31 | 1156452 | Tube, Discharge |
|
- | |||||
| 32 | 488481 | Screw, Repair |
|
- | |||||
| 32 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 33 | 1156642 | Tube, Maniflod |
|
- | |||||
| 36 | WP854334 | Seal, Condenser Bottom (2) (Replaces: 859600) |
|
$ 12.55 | |||||
| 37 | 948090 | Seal, Condenser Top |
|
- | |||||
| 38 | 1168429 | Condenser |
|
- | |||||
| 39 | 1166089 | Clip, Mtg. (2) |
|
- | |||||
| 41 | 1158407 | Bend, Return (1) |
|
- | |||||
| 42 | 1156107 | Bend, Return Three-way |
|
- |
