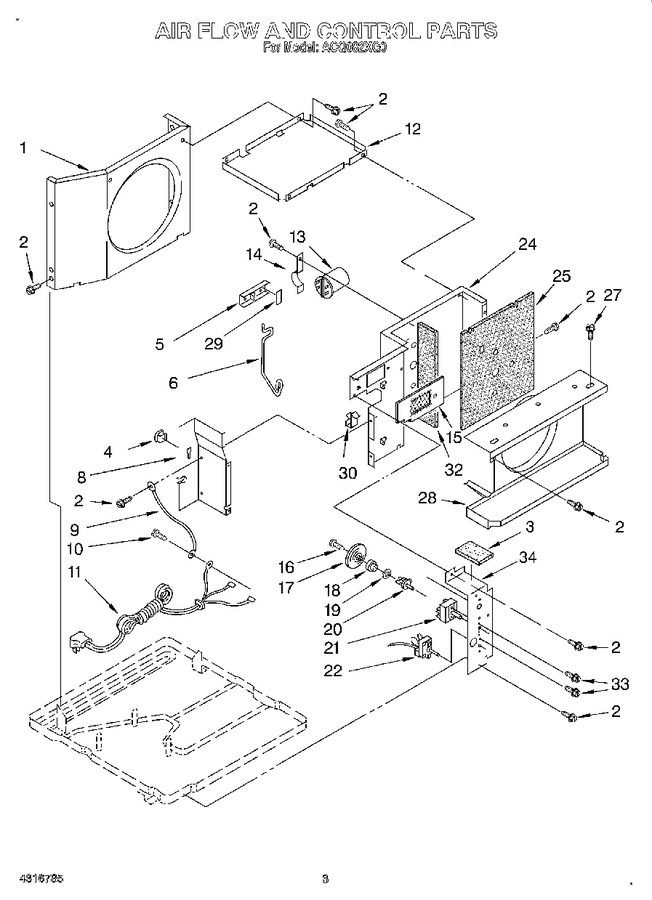

02 - Airflow And Control


03 - Cabinet


04 - Optional


05 - Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	856037		Shroud, Condenser		Appelez-nous	-
2	488481		Screw, Repair		Appelez-nous	-
2	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
3	1158576		Insulation, Top (control Panel)		Appelez-nous	-
4	644401		Clip, Retainer		Appelez-nous	-
5	644206		Door, Exhaust		Appelez-nous	-
6	859235		Arm, Exhaust Door		Appelez-nous	-
8	994561		Extension, Dividing Wall (includes Item 3)		Appelez-nous	-
9	856094		Wire, Ground		Appelez-nous	-
10	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
11	1165241		Cord, Appliance		Appelez-nous	-
12	1156536		Support, Unit		Appelez-nous	-
13	1162599		Capacitor, Running		Appelez-nous	-
14	1167611		Bracket, Capacitor		Appelez-nous	-
15	1162926		Screen, Insulation Assembly		Appelez-nous	-
16	489092		Screw, 7-18 X 5/8		Appelez-nous	-
17	859234		Cam, Control		Appelez-nous	-
18	859233		Bushing, Control		Appelez-nous	-
19	00647881		Spring, Washer   (Replaces: 647881)				$ 366.51
20	859232		Shaft, Control		Appelez-nous	-
21	1172176		Switch, Rotary		Appelez-nous	-
22	1166759		Control, Temperature		Appelez-nous	-
24	1167154		Wall, Dividing		Appelez-nous	-
25	1166338		Insulation (back, Dividing Wall)		Appelez-nous	-
27	WP488729		Screw, No.8 X 1/2 (2)   (Replaces: 487910)			Immediately	$ 7.45
28	856039		Shroud Assembly, Evaporator		Appelez-nous	-
29	1159175		Spacer		Appelez-nous	-
30	852451		Clamp, Cable		Appelez-nous	-
32	1166339		Insulation (side, Dividing Wall)		Appelez-nous	-
33	488734		Screw, 6-32 X .175 (4)		Appelez-nous	-
34	996962		Panel, Control		Appelez-nous	-
