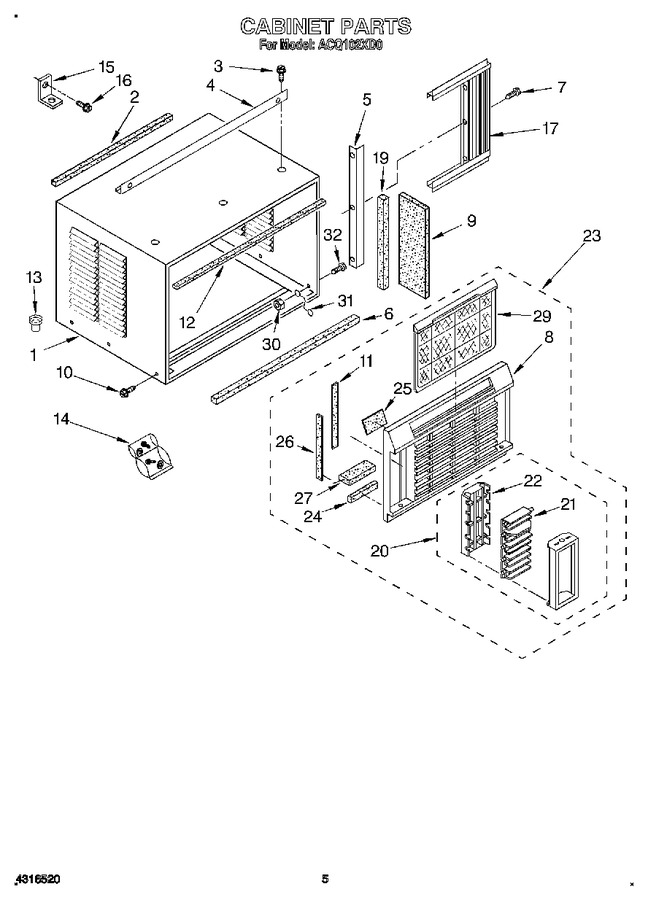

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1163055		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
4	1157196		Chanel, Top		Appelez-nous	-
5	644224		Retainer, Curtain		Appelez-nous	-
6	1159289		Seal		Appelez-nous	-
7	1161561		Screw 3/8 (3)		Appelez-nous	-
8	1156971		Cabinet Front		Appelez-nous	-
9	1161748		Insulation (2)		Appelez-nous	-
10	1161561		Screw 3/8 (6)		Appelez-nous	-
11	1161747		Insul/cabinet Side		Appelez-nous	-
12	1158593		Seal, Cabinet Top		Appelez-nous	-
13	997285		Cup, Condensate Drain		Appelez-nous	-
14	1157654		Accessory, Bag		Appelez-nous	-
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw, 8 X 3/4		Appelez-nous	-
17	1164406		Curtain (right Side)		Appelez-nous	-
17	1164405		Curtain (left Side)		Appelez-nous	-
19	1159254		Seal, Strip (2)		Appelez-nous	-
20	1159334		Cartridge, Complete		Appelez-nous	-
21	1159333		Horzontal Louver (right, Side)		Appelez-nous	-
21	1156974		Horzontal, Louver (right, Side)		Appelez-nous	-
22	1156975		Ribs, Vertical		Appelez-nous	-
23	1166519		Front, Complete		Appelez-nous	-
24	1161746		Seal, (2)		Appelez-nous	-
25	1159081		Seal		Appelez-nous	-
26	1159079		Seal (2)		Appelez-nous	-
27	1161205		Seal (2)		Appelez-nous	-
29	1166496		Filter				$ 52.49
30	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
31	856094		Wire, Ground		Appelez-nous	-
32	488853		Screw, 8-32 X 3/8		Appelez-nous	-
