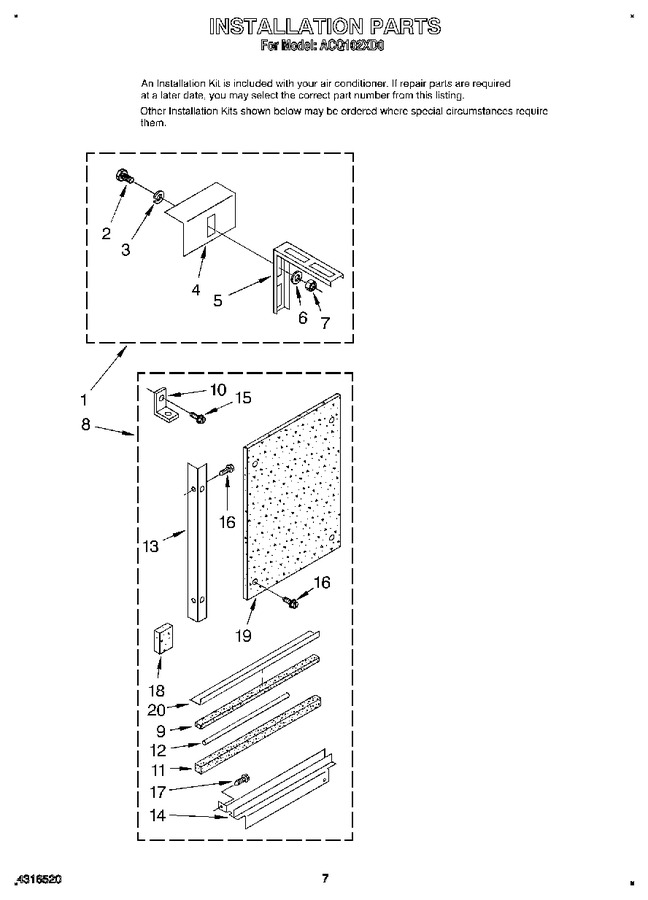

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	485678		Kit, Outside Sill (for Additional Support)		Appelez-nous	-
2	488750		Bolt, 1/4-20 X 3/4 (6)		Appelez-nous	-
3	488808		Washer, Flat (6)		Appelez-nous	-
4	645515		Bracket, Sill (2)		Appelez-nous	-
5	485466		Bracket, Rail (2)		Appelez-nous	-
6	486009		Washer, Lock (6)		Appelez-nous	-
7	486035		Nut, 1/4-20 (6)		Appelez-nous	-
8	1155851		Kit, Economy Installation		Appelez-nous	-
9	855266		Strip, Seal		Appelez-nous	-
10	644228		Bracket, Window Lock		Appelez-nous	-
11	469877		Seal, Meeting Rail		Appelez-nous	-
12	212643		Sealer, Permagum			Immediately	$ 86.78
13	646233		Angle, Side Mounting (2)		Appelez-nous	-
14	645563		Bracket, Top Mounting (left Side)		Appelez-nous	-
14	645562		Bracket, Top Mounting ((right Side))		Appelez-nous	-
15	488255		Screw, Wood No.8 X 3/4 (6)		Appelez-nous	-
16	488481		Screw S.m. No.10 X 3/8 (6)		Appelez-nous	-
17	WP965173		Screw S.m. No.8 X 3/8 (6)   (Replaces: 488017)			Immediately	$ 10.68
18	995274		Spacer, Filler Board (2)		Appelez-nous	-
19	646237		Board, Filler, (2)		Appelez-nous	-
20	646232		Channel, Top		Appelez-nous	-
	LIT485706		Instructions, Installation (outside Sill Kit)		Appelez-nous	-
	LIT1155124		Instructions, Installation (economy Kit)		Appelez-nous	-
