View Diagram in Separate Window
Print Part List

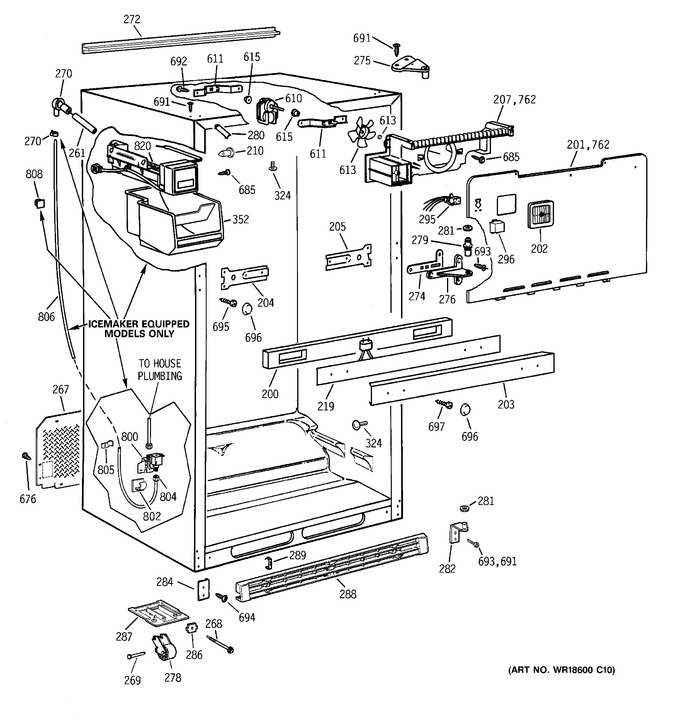

SELECT A DIAGRAM
1 - Freezer Door
2 - Fresh Food Door
3 - Cabinet
4 - Shelf Parts
5 - Compartment Separator Parts
6 - Unit Parts
7 - Icemaker Wr30x0303
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | WR14X356 | Foam Strip Mullion |
|
- | |||||
| 201 | WR17X2269 | Cover Evap Asm |
|
- | |||||
| 202 | WR2X8629 | Grille Ice Serv Snap-in |
|
- | |||||
| 203 | WR17X4195 | Mullion Crosspiece Wh |
|
- | |||||
| 204 | WR2X7823 | Bracket Mullion Lh |
|
- | |||||
| 205 | WR2X7822 | Bracket Mullion Rh |
|
- | |||||
| 207 | WR17X2990 | Plenum |
|
- | |||||
| 210 | WR2X6261 | Grommet Shelf Fz |
|
- | |||||
| 219 | WR51X10007 | Heater Mullion |
|
- | |||||
| 261 | WR02X10070 | Tube Water Fill |
|
- | |||||
| 267 | WR82X10047 | Cover Access Asm |
|
- | |||||
| 268 | WR1X1816 | Screw Mobility |
|
- | |||||
| 269 | WR1X1803 | Key Pivot |
|
- | |||||
| 270 | WR1X5223 | Clamp Hose |
|
- | |||||
| 270 | WR2X8474 | Grommet Water Fill |
|
- | |||||
| 272 | WR17X3699 | Guard Asm Wh |
|
- | |||||
| 274 | WR13X717 | Shim Hinge Ctr |
|
- | |||||
| 275 | WR13X715 | Hinge Top Pin Asm Wh |
|
- | |||||
| 276 | WR13X714 | Hinge Center Asm Wh |
|
- | |||||
| 278 | WR2X8842 | Mobility Front Asm |
|
- | |||||
| 279 | WR13X716 | Pin Hinge Ctr |
|
- | |||||
| 280 | WR2X7656 | Cap Corner O.c. Wh |
|
- | |||||
| 281 | WG03L08792 | Washer Hinge Brown (Replaces: WR01X10146) |
|
Immediately | $ 3.57 | ||||
| 282 | WR13X648 | Hinge Btm Asm Wh |
|
- | |||||
| 284 | WR2X9367 | Cap Btm Corner O.c. Wh |
|
- | |||||
| 286 | WR1X1815 | Leveling Nut |
|
- | |||||
| 287 | WR2X9168 | Gusset |
|
- | |||||
| 288 | WR74X220 | Grille Base Asm Wh |
|
- | |||||
| 289 | WR2X7646 | Clip Base Grille |
|
- | |||||
| 295 | WR23X315 | Receptacle Icemaker |
|
- | |||||
| 296 | WR2X8444 | Cover Plug I M |
|
- | |||||
| 324 | WG03F01629 | Plug Button Sm Wh (Replaces: WR2X7051) |
|
$ 4.78 | |||||
| 324 | WR2X7069 | Plug Button Lg Wh |
|
- | |||||
| 352 | WR30X291 | Ice Bucket |
|
- | |||||
| 610 | WR60X206 | Motor Evap Fan |
|
- | |||||
| 611 | WR2X9225 | Bracket Evap Fan |
|
- | |||||
| 613 | WR2X3198 | Ring Compression |
|
- | |||||
| 613 | WR60X123 | Blade Evap Fan |
|
- | |||||
| 615 | WR2X7391 | Grommet Evap Fan |
|
- | |||||
| 676 | WZ04X0263 | Scr 10-16 Abh Ws 1/2s |
|
- | |||||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh |
|
- | |||||
| 691 | WG03A00052 | Screw 12-24 Wh (Replaces: WR1X2138) |
|
$ 4.20 | |||||
| 692 | WZ04X0416 | Screw |
|
- | |||||
| 693 | WG03A00435 | Screw 12-24 Wh (Replaces: WR1X2136) |
|
$ 4.20 | |||||
| 694 | WR1X2120 | Scr 12-24tt Bhst .7 Wh |
|
- | |||||
| 695 | WR01X10060 | Scr 12-24tt Bht .700 Sc |
|
- | |||||
| 696 | WR02X10170 | Cover Screw Wh |
|
- | |||||
| 697 | WR01X10061 | Scr 12-24tt Bht .900(wh) |
|
- | |||||
| 762 | WR14X313 | Foam Strip |
|
- | |||||
| 800 | WR57X107 | Water Valve Asm |
|
- | |||||
| 802 | WR1X1360 | Clip U |
|
- | |||||
| 804 | WG03A00093 | Nut Sleeve 1/4 (Replaces: WR57X57) |
|
$ 11.44 | |||||
| 805 | WR2X3736 | Clamp Tube |
|
- | |||||
| 806 | WR17X3475 | Water Line |
|
- | |||||
| 808 | WR2X4039 | Adhesive Clip |
|
- | |||||
| 820 | WR30X303 | Im Crescent 230v |
|
- |
