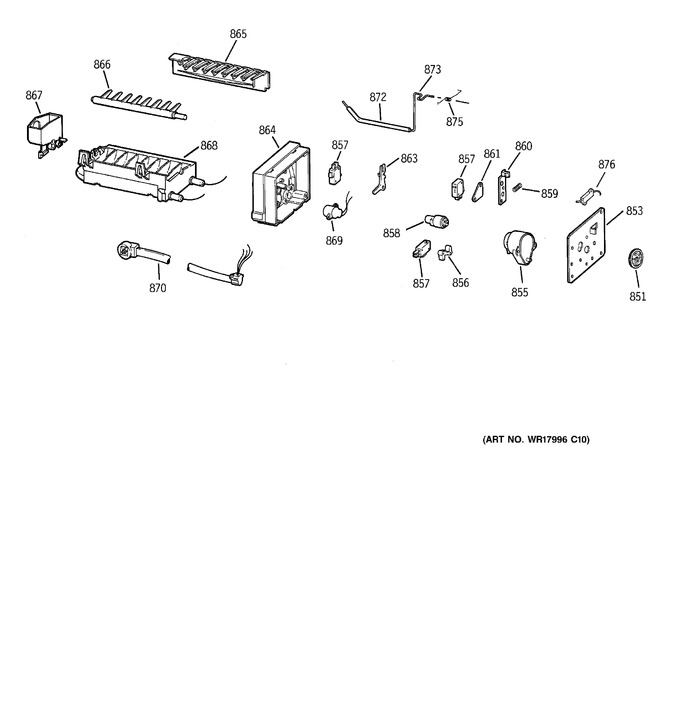

7 - Icemaker Wr30x0303
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 851 | WR29X5162 | Gear |
|
- | |||||
| 853 | WR29X174 | Mtg Plate |
|
- | |||||
| 855 | WR29X5164 | Motor |
|
- | |||||
| 856 | WR29X5186 | Spacer |
|
- | |||||
| 857 | WR29X175 | Switch |
|
- | |||||
| 858 | WR29X5167 | Cam |
|
- | |||||
| 859 | WR29X5190 | Spring |
|
- | |||||
| 860 | WR29X5189 | Plate |
|
- | |||||
| 861 | WR29X5188 | Insulator |
|
- | |||||
| 863 | WR29X5183 | Arm Lever |
|
- | |||||
| 864 | WR29X189 | Support |
|
- | |||||
| 865 | WR29X202 | Stripper |
|
- | |||||
| 866 | WR29X5174 | Ejector |
|
- | |||||
| 867 | WR29X150 | Bearing Inlet |
|
- | |||||
| 868 | WR29X176 | Mold Body Asm |
|
- | |||||
| 869 | WR29X5168 | Thermostat |
|
- | |||||
| 870 | WR29X5169 | Harness Asm |
|
- | |||||
| 872 | WR29X5178 | Arm Tube |
|
- | |||||
| 873 | WR29X5179 | Feeler Arm |
|
- | |||||
| 875 | WR29X5181 | Spring |
|
- | |||||
| 876 | WR29X178 | Resistor Pwr |
|
- |
