SELECT A DIAGRAM

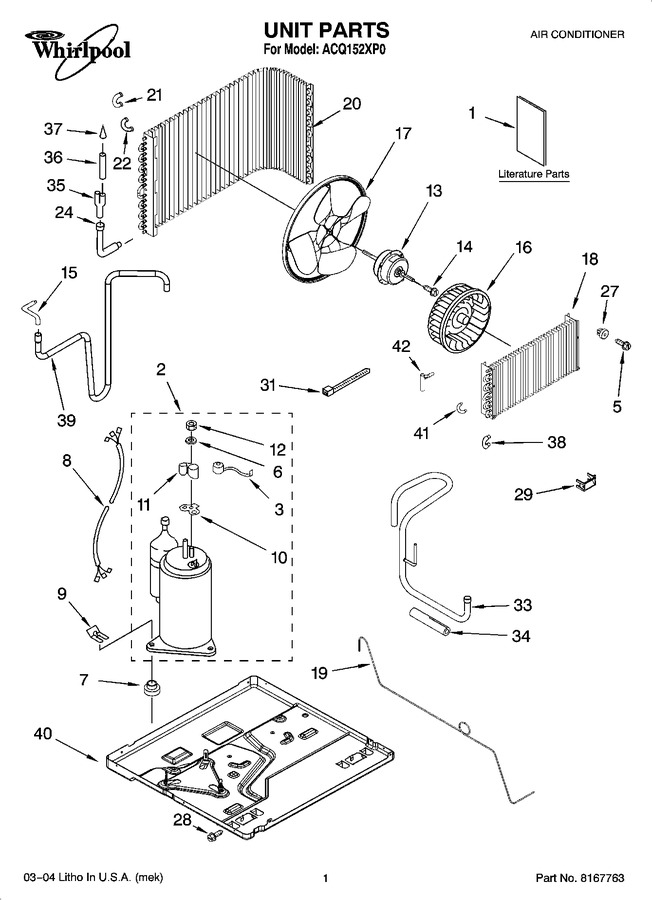

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Installation Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1185264		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT1187361		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT1187654		Energy Guide		Appelez-nous	-
2	1187687		Compressor		Appelez-nous	-
3	1186662		Overload		Appelez-nous	-
5	WP489463		Screw   (Replaces: 8533969)				$ 7.43
6	1182120		Gasket		Appelez-nous	-
7	WP950021		Grommet   (Replaces: 950021)				$ 78.99
8	1187606		Wiring Harness, Compressor		Appelez-nous	-
9	8011446		Clip, Compressor		Appelez-nous	-
10	1182118		Gasket, Terminal Cover		Appelez-nous	-
11	1184748		Cover, Terminal		Appelez-nous	-
12	W10833054		Nut, Hex   (Replaces: 1186128)		Appelez-nous	-
13	1187470		Motor, Fan		Appelez-nous	-
14	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 7.92
15	1187650		Tube, Feeder		Appelez-nous	-
16	1187186		Wheel, Blower		Appelez-nous	-
17	1187178		Blade, Fan		Appelez-nous	-
18	1187327		Evaporator		Appelez-nous	-
19	1187649		Tube, Restrictor		Appelez-nous	-
20	1187439		Condenser		Appelez-nous	-
21	1187604		Bend, Return		Appelez-nous	-
22	8031222		Bend, Return		Appelez-nous	-
24	1187660		Tube, Connecting		Appelez-nous	-
27	1187495		Grommet, Screw		Appelez-nous	-
28	488624		Screw		Appelez-nous	-
29	1185337		Clip, Temperature Anticipator		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
33	1187528		Tube, Suction (includes Item 34)		Appelez-nous	-
34	1187638		Seal, Suction Tube		Appelez-nous	-
35	947364		Tube, Flow Divider		Appelez-nous	-
36	1155460		Tube, Outlet (includes Item 37)		Appelez-nous	-
37	49599		Strainer		Appelez-nous	-
38	855199		Bend, Returm		Appelez-nous	-
39	1187527		Tube, Discharge		Appelez-nous	-
40	1187184		Base		Appelez-nous	-
41	855644		Bend, Return		Appelez-nous	-
42	1187454		Manifold, Suction		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
