SELECT A DIAGRAM

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Installation Parts


05 - Optional Parts (not Included)

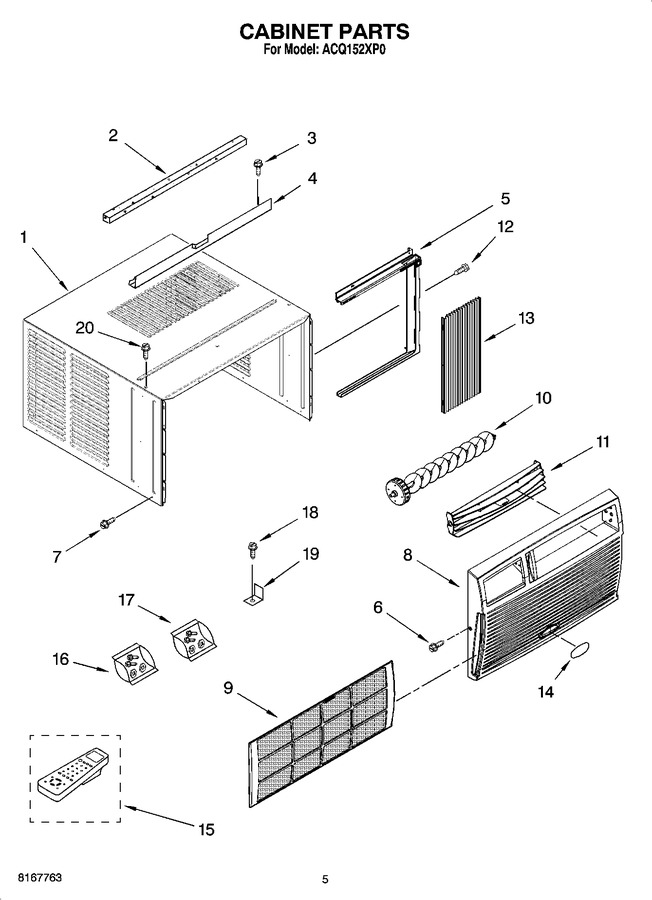

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1187194		Cabinet		Appelez-nous	-
2	469877		Seal, Meeting Rail		Appelez-nous	-
3	WP3390631		Screw, 10-12 X .375   (Replaces: 309112)				$ 7.43
4	1187203		Channel, Top		Appelez-nous	-
5	1187531		Frame, Curtain (left Side)		Appelez-nous	-
5	1187530		Frame, Curtain (right Side)		Appelez-nous	-
6	WP3196557		Screw   (Replaces: 1168744)			Immediately	$ 7.16
7	488624		Screw, 8-15 X .375		Appelez-nous	-
8	1187196		Front				$ 92.44
9	1187197		Filter		Appelez-nous	-
10	1187260		Louver, Vertical		Appelez-nous	-
11	1187259		Louver Horizontal		Appelez-nous	-
12	WP965173		Screw, 8-18 X .375   (Replaces: 246132)			Immediately	$ 10.68
13	1187532		Curtain		Appelez-nous	-
14	WP2213265		Nameplate   (Replaces: 1187169)			Immediately	$ 83.86
15	1187760		Control, Remote		Appelez-nous	-
16	476180		Bag, Accessory		Appelez-nous	-
17	1185948		Bag, Accessory (for Curtains)		Appelez-nous	-
18	488255		Screw, Wood 8-15 X .750		Appelez-nous	-
19	644228		Bracket, Window Lock		Appelez-nous	-
20	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72

    View Diagram in Separate Window       Print Part List
