01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


05 - Installation Parts

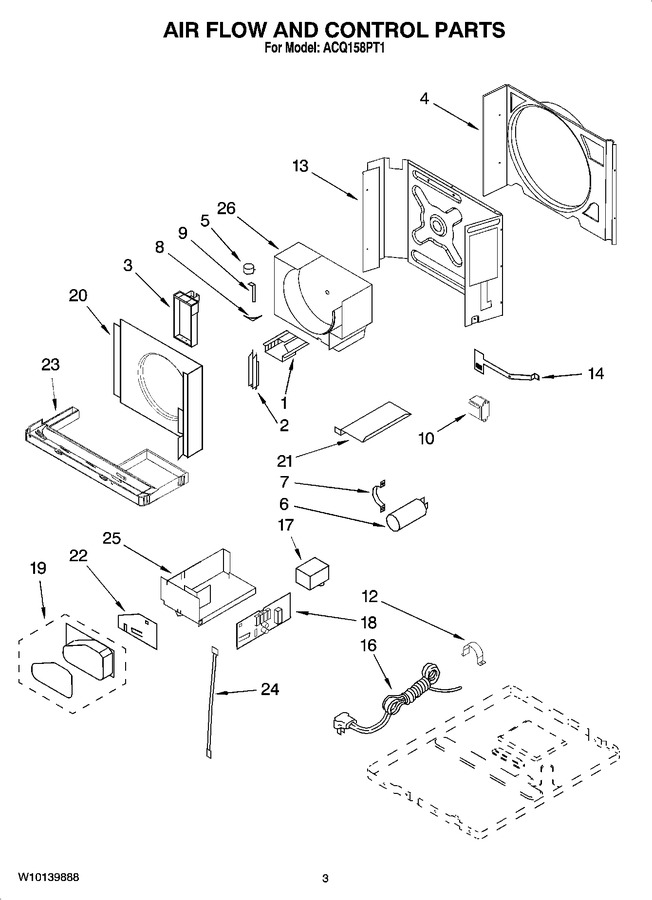

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8215111		Housing, Air		Appelez-nous	-
2	8215112		Louver		Appelez-nous	-
3	8215116		Cartridge, Louver		Appelez-nous	-
4	8215119		Shroud, Condenser		Appelez-nous	-
5	8215293		Motor, Louver		Appelez-nous	-
6	8215299		Capacitor, Running		Appelez-nous	-
7	8215301		Bracket, Capacitor		Appelez-nous	-
8	8215113		Linkage, Louver		Appelez-nous	-
9	8215115		Linkage, Louver		Appelez-nous	-
10	WP8215051		Transformer   (Replaces: 8215051)				$ 185.28
12	8215135		Wire Clamp		Appelez-nous	-
13	8215109		Wall, Dividing		Appelez-nous	-
14	8215117		Door, Exhaust		Appelez-nous	-
16	8215303		Cord, Appliance		Appelez-nous	-
17	8209948		Capacitor		Appelez-nous	-
18	8215302		Microcomputer		Appelez-nous	-
19	8215138		Escutcheon		Appelez-nous	-
20	8215105		Shroud, Evaporator		Appelez-nous	-
21	8215120		Cover, Air Duct		Appelez-nous	-
22	8215137		Display Board		Appelez-nous	-
23	8215127		Pan, Evaporator		Appelez-nous	-
24	8209739		Thermistor		Appelez-nous	-
25	8215133		Box, Control		Appelez-nous	-
26	8215110		Housing, Air		Appelez-nous	-
