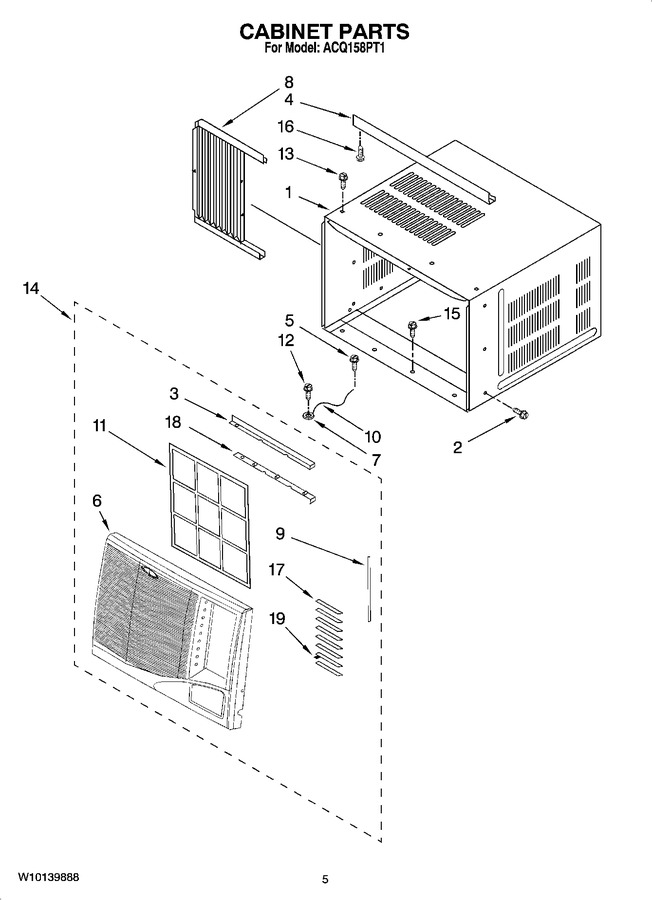

01 - Unit Parts
02 - Air Flow And Control Parts
03 - Cabinet Parts
04 - Optional Parts (not Included)
05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8215100 | Cabinet |
|
- | |||||
| 2 | 8215282 | Screw |
|
- | |||||
| 3 | 8215139 | Membrane |
|
- | |||||
| 4 | 8215287 | Channel, Top |
|
- | |||||
| 5 | 8215283 | Screw |
|
- | |||||
| 6 | 8215305 | Front, Cabinet |
|
- | |||||
| 7 | 8215284 | Washer |
|
- | |||||
| 8 | 8215099 | Curtain Assembly Right & Left Side |
|
- | |||||
| 9 | 8215141 | Guide, Linkage |
|
- | |||||
| 10 | 8215101 | Ground Wire |
|
- | |||||
| 11 | 8215142 | Filter |
|
- | |||||
| 12 | 8215285 | Screw |
|
- | |||||
| 13 | 8215286 | Screw |
|
- | |||||
| 14 | 8215140 | Front, Cabinet Assembly |
|
- | |||||
| 15 | 8215286 | Screw |
|
- | |||||
| 16 | 8215288 | Screw |
|
- | |||||
| 17 | 8215143 | Guide, Louver |
|
- | |||||
| 18 | 8215145 | Guide, Filter (up) |
|
- | |||||
| 18 | 8215146 | Guide, Filter (down) |
|
- | |||||
| 19 | 8215144 | Guide, Louver |
|
- |
