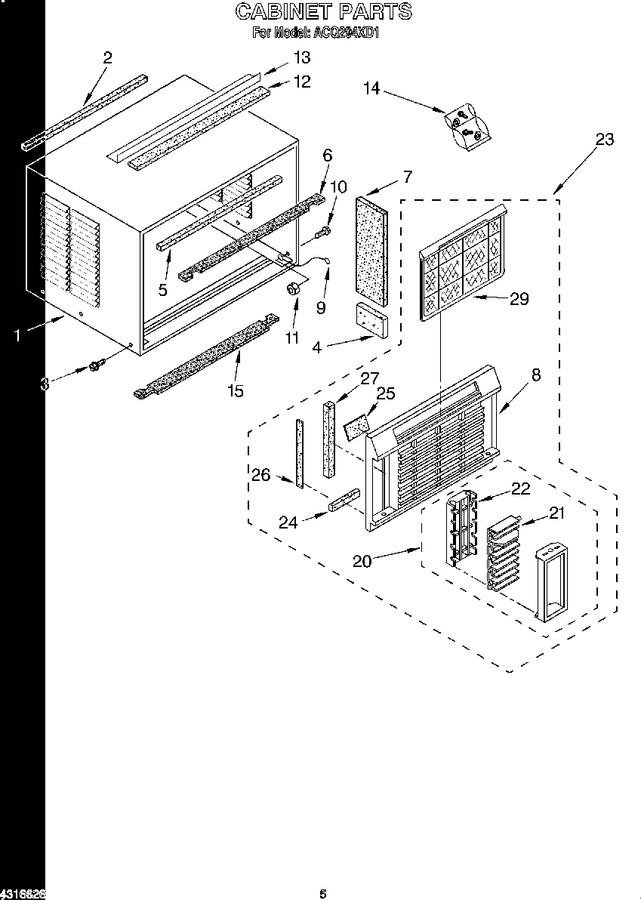

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1162272		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
4	1160818		Insulation, Cabinet Side (2)		Appelez-nous	-
5	1158731		Seal, Top		Appelez-nous	-
6	1160762		Seal		Appelez-nous	-
7	1160819		Insulation, Cabinet Side (2)		Appelez-nous	-
8	1157463		Frame, Front		Appelez-nous	-
9	857022		Wire, Ground		Appelez-nous	-
10	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 6.37
11	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
12	1163784		Seal, Top Mounting Angle		Appelez-nous	-
13	644271		Angle, Top Mount.		Appelez-nous	-
14	1166387		Bag, Accessory		Appelez-nous	-
15	1160768		Seal, Cabinet (bottom)		Appelez-nous	-
20	1157464		Cartridge, Complete		Appelez-nous	-
21	1157466		Louver, Horizontal		Appelez-nous	-
22	1157467		Ribs, Vertical		Appelez-nous	-
23	1166753		Front, Complete		Appelez-nous	-
24	1160764		Seal Bottom (right Side)		Appelez-nous	-
24	1160763		Seal, Bottom (left Side)		Appelez-nous	-
25	1161864		Seal, Top (left Side)		Appelez-nous	-
25	1160770		Seal Top (right Side)		Appelez-nous	-
26	1160769		Seal		Appelez-nous	-
27	WP854334		Seal   (Replaces: 1161863)				$ 12.55
29	1166750		Filter		Appelez-nous	-
