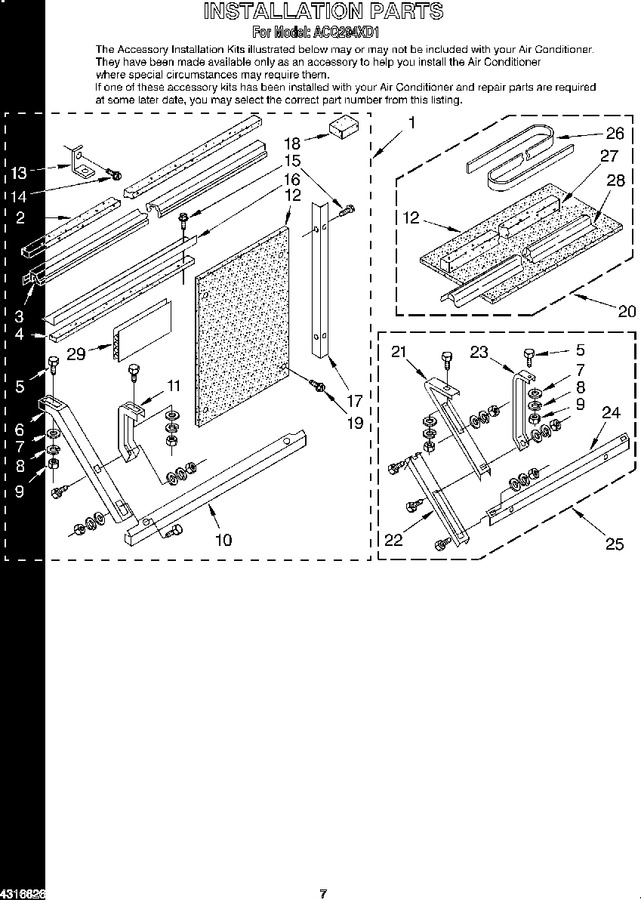

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1162147		Kit, Standard Installation		Appelez-nous	-
2	469877		Seal, Meeting Rail		Appelez-nous	-
3	1166388		Gasket, Sash		Appelez-nous	-
4	855265		Strip, Seal		Appelez-nous	-
5	488750		Bolt, 1/4 X 3/4 (6)		Appelez-nous	-
6	649945		Support, Cabinet (2)		Appelez-nous	-
7	488808		Washer (6)		Appelez-nous	-
8	486009		Lockwasher (6)		Appelez-nous	-
9	486035		Nut, Hex (6)		Appelez-nous	-
10	649947		Bracket, Support		Appelez-nous	-
11	649946		Support, Retainer (2)		Appelez-nous	-
12	1166266		Board, Filler		Appelez-nous	-
13	644228		Bracket		Appelez-nous	-
14	487371		Screw (window Lock Bracket)		Appelez-nous	-
15	488624		Screw (side & Top Angles To Cabinet)		Appelez-nous	-
16	644271		Angle, Top		Appelez-nous	-
17	644272		Angle (2)		Appelez-nous	-
18	995274		Spacer, Block (4)		Appelez-nous	-
19	1166265		Screw (side Angle To Filler Board)		Appelez-nous	-
20	485679		Kit, Outside Support		Appelez-nous	-
21	12035780		Support, Cabinet (2)   (Replaces: 644283)			Immediately	$ 345.77
22	00644284		Extension, Support (2)   (Replaces: 644284)				$ 34.20
23	644285		Retainer, Cabinet (2)		Appelez-nous	-
24	644281		Bracket, Support		Appelez-nous	-
25	485856		Kit, Wide Window		Appelez-nous	-
26	856979		Strip, Seal		Appelez-nous	-
27	470800		Seal, Meeting Rail		Appelez-nous	-
28	485457		Gasket, Sash (54``)		Appelez-nous	-
29	212643		Sealer, Gum Type   (Replaces: 470168)			Immediately	$ 86.78
	LIT1166072		Instructions, Installation (standard Mounting Kit)		Appelez-nous	-
	LIT485707		Instructions, Installation (outside Support Kit		Appelez-nous	-
	LIT1155965		Instructions, Installation (wide Window Kit)		Appelez-nous	-
