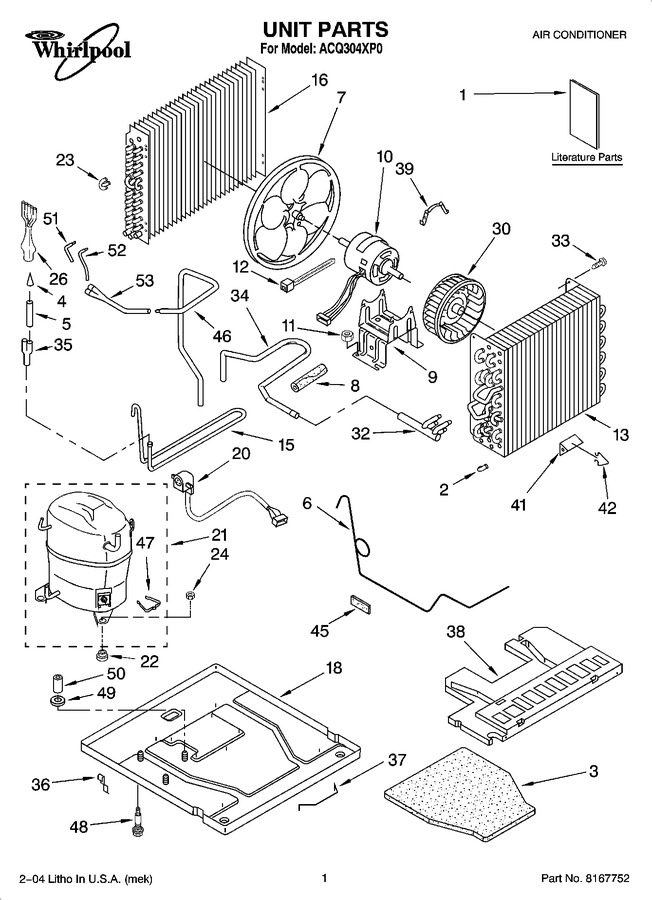

01 - Unit Parts
02 - Airflow And Control Parts
03 - Cabinet Parts
04 - Optional Parts (not Included)
05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1186898 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT1185264 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT1187248 | Energy Guide |
|
- | |||||
| 2 | 855199 | Bend, Return |
|
- | |||||
| 3 | 1167085 | Insulation, Base (bottom) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 1163768 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 1186077 | Tube, Restrictor (4) |
|
- | |||||
| 7 | 1158665 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1186425 | Seal, Suction Tube |
|
- | |||||
| 9 | 1160672 | Bracket, Fan Motor |
|
- | |||||
| 10 | 1187770 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 1159130) |
|
$ 7.47 | |||||
| 13 | 1185744 | Evaporator |
|
- | |||||
| 15 | 1185519 | Wet, Loop |
|
- | |||||
| 16 | 1185738 | Condenser |
|
- | |||||
| 18 | 1185846 | Base |
|
- | |||||
| 20 | 1186572 | Harness, Wiring Compressor |
|
- | |||||
| 21 | 1184620 | Compressor |
|
- | |||||
| 22 | 1165973 | Grommet (3) |
|
- | |||||
| 23 | 1158685 | Return Bend 3-way |
|
- | |||||
| 24 | 1160798 | Locknut (3) |
|
- | |||||
| 26 | 1185986 | Distributor (bottom) |
|
- | |||||
| 30 | 1185543 | Wheel, Blower (evaporator) |
|
$ 87.79 | |||||
| 32 | 1186089 | Manifold, Suction |
|
- | |||||
| 33 | WP489069 | Screw 8-15 X .500 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 34 | 1186088 | Tube, Suction |
|
- | |||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 36 | 471088 | Clamp (2) |
|
- | |||||
| 37 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 38 | 1185843 | Pan, Drain |
|
- | |||||
| 39 | WPY015825 | Clip, Motor (2) (Replaces: 1157015) |
|
$ 22.65 | |||||
| 41 | 1185173 | Anticipator |
|
- | |||||
| 42 | 475577 | Clip, Anticipator |
|
- | |||||
| 45 | 1163759 | Seal, Restrictor Tube |
|
- | |||||
| 46 | 1164476 | Tube, Discharge |
|
- | |||||
| 47 | 1161083 | Retainer, Cover |
|
- | |||||
| 48 | 1165674 | Bolt, Compressor |
|
- | |||||
| 49 | 1160654 | Spacer, Grommet |
|
- | |||||
| 50 | 1160655 | Sleeve, Mounting |
|
- | |||||
| 51 | 1186185 | Tube, Feeder |
|
- | |||||
| 52 | 1186184 | Tube, Feeder |
|
- | |||||
| 53 | 1186090 | Tube, Discharge Top Assembly (includes 51 & 52) |
|
- |
