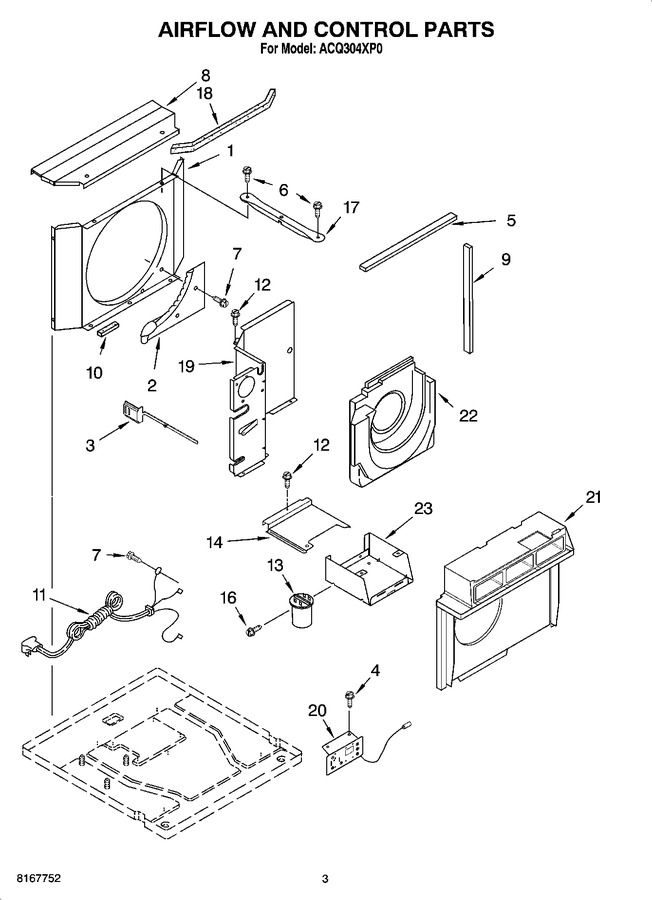

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157403		Shroud, Condenser		Appelez-nous	-
2	1160684		Cup, Condensate		Appelez-nous	-
3	1185506		Door, Exhaust		Appelez-nous	-
4	1159222		Screw (2)		Appelez-nous	-
5	1185513		Seal (top)		Appelez-nous	-
6	WP308685		Screw, 10 X 1/2   (Replaces: 488720)			Immediately	$ 7.08
7	WP489069		Screw, 8-1/2   (Replaces: 488480)			Immediately	$ 7.56
8	1157407		Top, Condenser		Appelez-nous	-
9	1185911		Seal (side)		Appelez-nous	-
10	1163332		Seal, Cup		Appelez-nous	-
11	1187508		Cord, Appliance		Appelez-nous	-
12	488624		Screw, 8-15 X .375		Appelez-nous	-
13	1186507		Capacitor		Appelez-nous	-
14	1186664		Cover, Control Box		Appelez-nous	-
16	WP489069		Screw, 8-18 X .375   (Replaces: 1157158)			Immediately	$ 7.56
17	1166169		Support, Unit (2)		Appelez-nous	-
18	1158732		Seal, Shroud		Appelez-nous	-
19	1185505		Dividing Wall		Appelez-nous	-
20	1186193		Control, Electronic		Appelez-nous	-
21	1187338		Shroud Assembly, Evaporator		Appelez-nous	-
22	1187339		Housing, Air		Appelez-nous	-
23	1185529		Control Box		Appelez-nous	-
