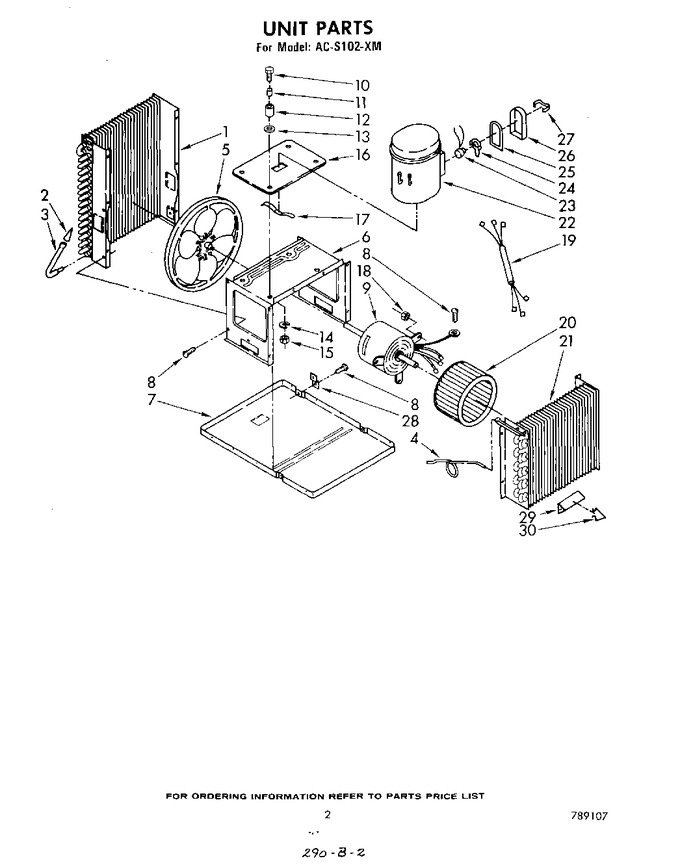

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	977952		Condenser		Appelez-nous	-
2	977848		Strainer		Appelez-nous	-
3	977979		Tube, Strainer		Appelez-nous	-
4	980941		Tube, Restrictor (length 22.0``)		Appelez-nous	-
5	977554		Fan, Slinger		Appelez-nous	-
6	977951		Mount, Compressor		Appelez-nous	-
7	977969		Base, Assembly		Appelez-nous	-
8	WP965173		Screw, 8 X 3/8   (Replaces: 487358)			Immediately	$ 10.68
9	977857		Motor, Fan		Appelez-nous	-
10	798389		Bolt, 5/16 X 1-1/2 (4)		Appelez-nous	-
11	798393		Sleeve (4)		Appelez-nous	-
12	798392		Grommet (4)				$ 11.33
13	487603		Washer (4)		Appelez-nous	-
14	487108		Washer, Lock (4)		Appelez-nous	-
15	486251		Palnut, 5/16-8 (4)		Appelez-nous	-
16	977831		Plate, Compressor Base		Appelez-nous	-
17	977440		Spring, Baseplate		Appelez-nous	-
18	977858		Nut, Hex No. 1/4 (3)		Appelez-nous	-
19	484136		Harness, Wiring (for Compressor Service)		Appelez-nous	-
20	977703		Wheel, Blower		Appelez-nous	-
21	977803		Evaporator		Appelez-nous	-
22	485552		Compressor		Appelez-nous	-
23	977621		Overload		Appelez-nous	-
24	977622		Spring, Overload		Appelez-nous	-
25	977833		Gasket, Cover		Appelez-nous	-
26	977834		Cover, Overload		Appelez-nous	-
27	977835		Retainer, Cover		Appelez-nous	-
28	977955		Bracket, Condenser Shroud		Appelez-nous	-
29	832245		Anticipator, Temperature		Appelez-nous	-
30	978030		Valve, Access (3/4``)				$ 123.53
30	505168		No Drip Tape (for Sweating Tubes)		Appelez-nous	-
30	978026		Valve, Access (5/16``)			Immediately	$ 121.04
30	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
30	978028		Valve, Access (1/2)		Appelez-nous	-
30	978029		Valve Access (5/8``)				$ 93.85
30	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
30	832246		Clip, Anticipator		Appelez-nous	-
30	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
