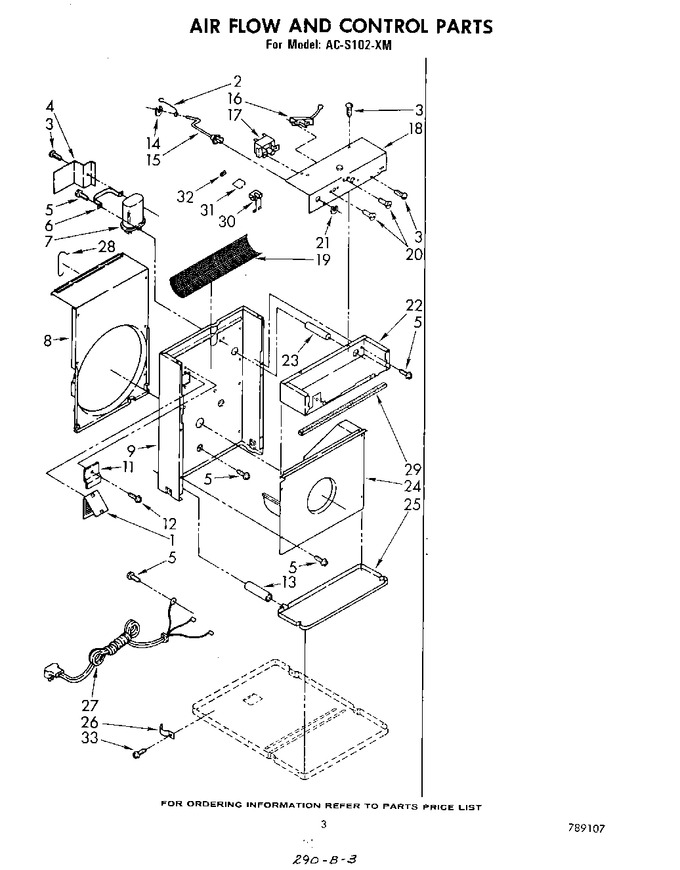

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	977891		Door, Exhaust		Appelez-nous	-
2	977901		Link, Wire		Appelez-nous	-
3	WP965173		Screw, 8 X 3/8   (Replaces: 487358)			Immediately	$ 10.68
4	977409		Bracket, Shield Capacitor		Appelez-nous	-
5	WP488729		Screw, 8 X 1/2   (Replaces: 487895)			Immediately	$ 7.45
6	977707		Clamp, Capacitor		Appelez-nous	-
7	980942		Capacitor, Running		Appelez-nous	-
8	977700		Shroud, Condenser		Appelez-nous	-
9	980707		Wall, Dividing		Appelez-nous	-
11	977950		Stop, Door Door		Appelez-nous	-
12	WP488729		Screw, 8 X 1/2   (Replaces: 977894)			Immediately	$ 7.45
13	977462		Tube, Drain		Appelez-nous	-
14	977452		Clip		Appelez-nous	-
15	977890		Control, Exhaust		Appelez-nous	-
16	977945		Control, Temperature		Appelez-nous	-
17	980931		Switch, Rotary		Appelez-nous	-
18	977911		Cover, Control Box		Appelez-nous	-
19	977690		Guard, Hazard		Appelez-nous	-
20	977838		Screw, 6-32 X 1/4		Appelez-nous	-
21	832241		Ring, Retainer		Appelez-nous	-
22	977968		Box, Control		Appelez-nous	-
23	977753		Tube, Wire Guard		Appelez-nous	-
24	977463		Housing, Blower Wheel		Appelez-nous	-
25	977461		Pan, Drain		Appelez-nous	-
26	798356		Clamp		Appelez-nous	-
27	832114		Cable, Appliance		Appelez-nous	-
28	977470		Retainer, Shroud Cover (2)		Appelez-nous	-
29	977664		Seal, Strip		Appelez-nous	-
30	977962		Heater, Thermostat		Appelez-nous	-
31	977957		Clip, Heater		Appelez-nous	-
32	977636		Pad, Heater		Appelez-nous	-
33	789107		List, Repair Parts		Appelez-nous	-
33	469938		Insulation, Fiberglass		Appelez-nous	-
33	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
33	799351		Thinner (1 Gal.)		Appelez-nous	-
33	980943		Sheet, Tech & Wiring Diagram		Appelez-nous	-
33	980944		Guide, Energy		Appelez-nous	-
33	980927		Guide, Use & Care		Appelez-nous	-
33	WP308685		Screw, Sm No.10 X 1/2   (Replaces: 487361)			Immediately	$ 7.08
33	47261		Wire, Black (25 Ft.)		Appelez-nous	-
33	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
33	47263		Wire, White (25 Ft.)		Appelez-nous	-
33	212643		Sealer, Gum (cabinets & Windows)   (Replaces: 470168)			Immediately	$ 86.78
33	WP279368		Cement, Attach Insulation)   (Replaces: 797403)			Immediately	$ 104.81

    View Diagram in Separate Window       Print Part List
