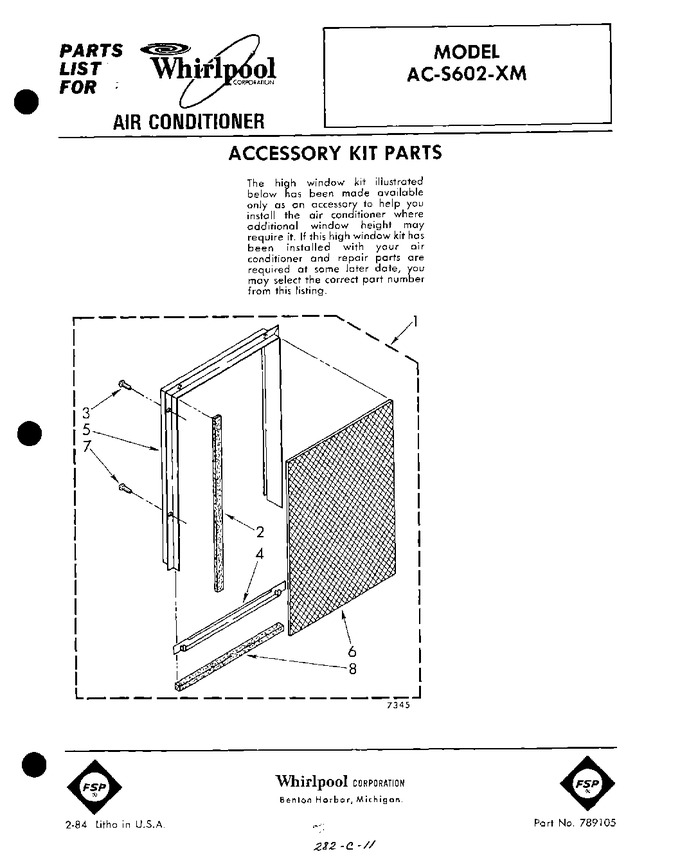

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 977449 | Kit, High Window Mounting (complete Assembly) |
|
- | |||||
| 2 | WP854334 | Gasket, Sides (2) (Replaces: 977998) |
|
$ 12.55 | |||||
| 3 | W10759522 | Screw, 8 X 3/4 (Replaces: 595102) |
|
$ 7.42 | |||||
| 4 | 977531 | Rail, Mounting |
|
- | |||||
| 5 | 977528 | Frame, Filler Panel |
|
- | |||||
| 6 | 977530 | Board, Filler |
|
- | |||||
| 7 | 832086 | Screw, 8-32 X 3/4 |
|
- | |||||
| 8 | 977546 | Meeting Rail Gasket |
|
- | |||||
| 8 | 977532 | Instructions, Installation |
|
- |
