Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

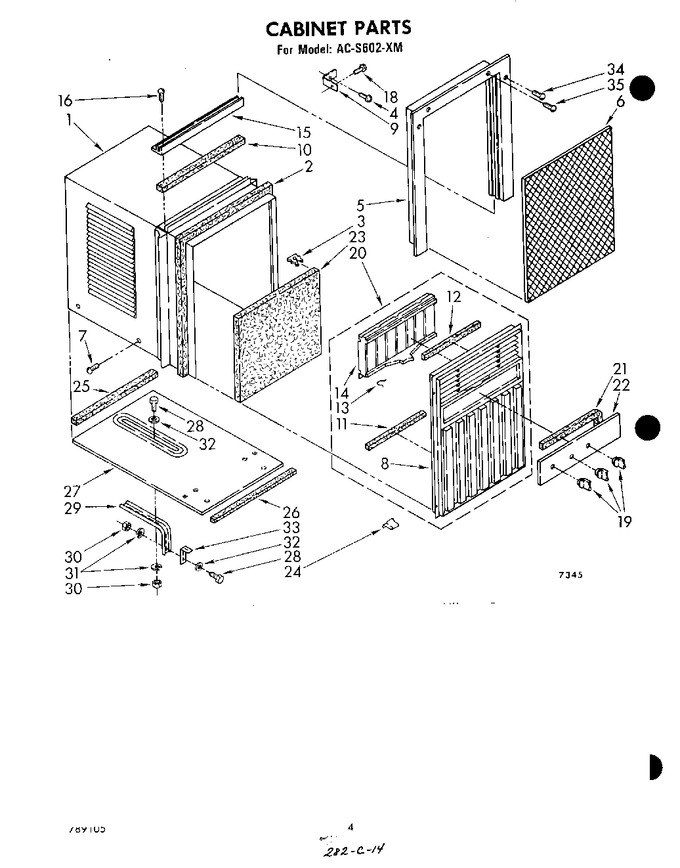

1	977908		Cabinet		Appelez-nous	-
2	977906		Strip, Seal Window		Appelez-nous	-
3	977850		Clip, Filter (2)		Appelez-nous	-
4	W10759522		Screw, 8 X 3/4 (2)   (Replaces: 595102)				$ 7.42
5	977897		Filler, Frame		Appelez-nous	-
6	977902		Board, Filler		Appelez-nous	-
7	WP965173		Screw, 8 X 3/8 (6)   (Replaces: 487358)			Immediately	$ 10.68
8	977953		Front		Appelez-nous	-
9	980703		Bracket, Window Locking (2)		Appelez-nous	-
10	977907		Seal Strip		Appelez-nous	-
11	977677		Strip, Seal		Appelez-nous	-
12	977710		Strip, Seal		Appelez-nous	-
13	977589		Retainer, Louver (2)		Appelez-nous	-
14	832171		Louver, Vertical		Appelez-nous	-
15	977896		Angle, Top		Appelez-nous	-
16	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 977997)			Immediately	$ 7.45
18	832086		Screw, 89 X 3/4 (2)		Appelez-nous	-
19	977949		Knob (3)		Appelez-nous	-
20	977954		Front Assembly		Appelez-nous	-
21	977673		Strip, Backing		Appelez-nous	-
22	980932		Plate, Dial		Appelez-nous	-
23	977839		Filter		Appelez-nous	-
24	798307		Spring, Front Support (2)		Appelez-nous	-
25	832415		Seal, Lower Track		Appelez-nous	-
26	977678		Strip Seal		Appelez-nous	-
27	977478		Shelf, Window Mounting		Appelez-nous	-
28	487692		Bolt, Carriage (5/16 X 3/4) (2)		Appelez-nous	-
29	977479		Bracket, Shelf (large)		Appelez-nous	-
30	486251		Nut, Hex No. 2 (2)		Appelez-nous	-
31	487108		Lockwasher (2)		Appelez-nous	-
32	487603		Washer (2)		Appelez-nous	-
33	977482		Bracket, Shelf (small)		Appelez-nous	-
34	487746		Screw, 10 X 1 (2)		Appelez-nous	-
35	798399		Screw, 10 X 1-3/4 (2)		Appelez-nous	-
