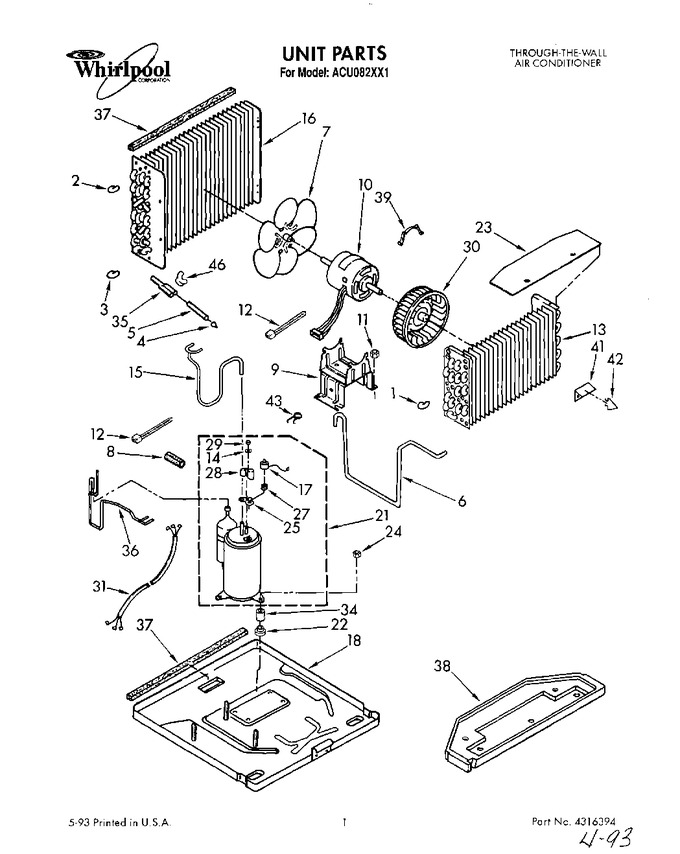

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	708531		Bend, Return Evaporator (3)		Appelez-nous	-
2	708532		Bend, Return Evaporator (9) Condenser (24)		Appelez-nous	-
3	1156329		Bend, Return Evaporator (1) Condenser (2)		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	951437		Tube, Outlet (includes Illus. 4)		Appelez-nous	-
6	1159927		Tube, Restrictor		Appelez-nous	-
7	1156979		Blade, Fan (condenser)				$ 61.53
8	1159284		Seal, Suction Tube		Appelez-nous	-
9	1156961		Bracket, Fan Motor		Appelez-nous	-
10	1157655		Motor, Fan		Appelez-nous	-
11	WP488130		Kep, Hex (4)   (Replaces: 1160408)				$ 6.59
12	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
13	1158998		Evaporator		Appelez-nous	-
14	950037		Gasket, Nut		Appelez-nous	-
15	1159928		Tube, Discharge		Appelez-nous	-
16	1156948		Condenser		Appelez-nous	-
17	WP1161170		Overload (production)   (Replaces: 951494)				$ 84.72
17	WP1161170		Overload (service)   (Replaces: 1161170)				$ 84.72
18	1163567		Base		Appelez-nous	-
21	4317916		Compressor   (Replaces: 1158043)		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	1157173		Insulation, Evaporator Shroud		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal (production)   (Replaces: 950213)				$ 9.83
28	WP950036		Cover, Terminal (service)   (Replaces: 950036)				$ 9.83
29	WP950027		Nut, Terminal Cover   (Replaces: 950027)				$ 5.20
30	1163571		Wheel, Blower (evaporator)		Appelez-nous	-
31	1158044		Harness, Compressor		Appelez-nous	-
34	858148		Sleeve (3)		Appelez-nous	-
35	1159832		Tube, Flow Divider		Appelez-nous	-
36	1163990		Tube, Suction Asy		Appelez-nous	-
37	1157622		Seal, Condenser Bottom		Appelez-nous	-
38	1158519		Pan, Drain		Appelez-nous	-
39	WPY015825		Clip, Motor (2)   (Replaces: 1157015)				$ 22.65
41	996773		Anticipator		Appelez-nous	-
42	475577		Clip, Anticipator		Appelez-nous	-
43	855930		Clamp, Tube		Appelez-nous	-
46	1159642		Return Bend		Appelez-nous	-
	LIT1163570		Instructions, Installation		Appelez-nous	-
	LIT4316394		Literature Parts (list, Repair Parts)		Appelez-nous	-
	LIT1157636		Tech Sheet		Appelez-nous	-
	LIT1157669		Use And Care Guide		Appelez-nous	-
