SELECT A DIAGRAM

01 - Unit


02 - Airflow & Control


03 - Cabinet

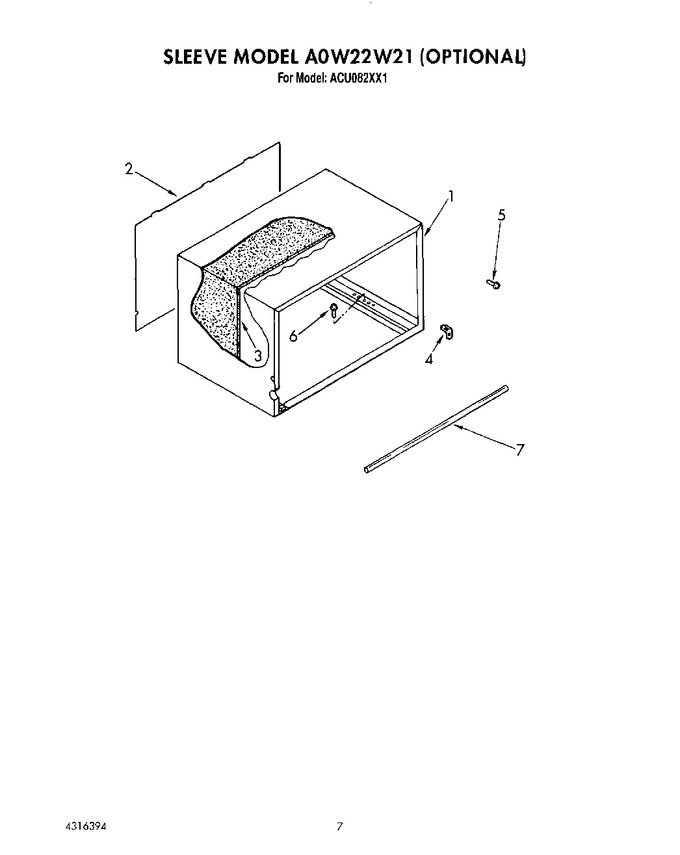

04 - Lit/optional


05 - Sleeve Model A0w22w21 (opt.)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1162968		Cabinet		Appelez-nous	-
2	1156968		Panel, Rear		Appelez-nous	-
3	1160111		Seal, Cabinet (top)		Appelez-nous	-
3	1160112		Seal, Cabinet (sides)		Appelez-nous	-
3	1160113		Seal, Cabinet (rear)		Appelez-nous	-
4	1160605		Bracket, Support (5)		Appelez-nous	-
5	WP489069		Screw No.8-3/8 (10)   (Replaces: 1157158)			Immediately	$ 7.56
6	487371		Screw No.10 X 3/4 (8)		Appelez-nous	-
7	212643		Sealer, Gum   (Replaces: 470168)			Immediately	$ 86.78

    View Diagram in Separate Window       Print Part List
