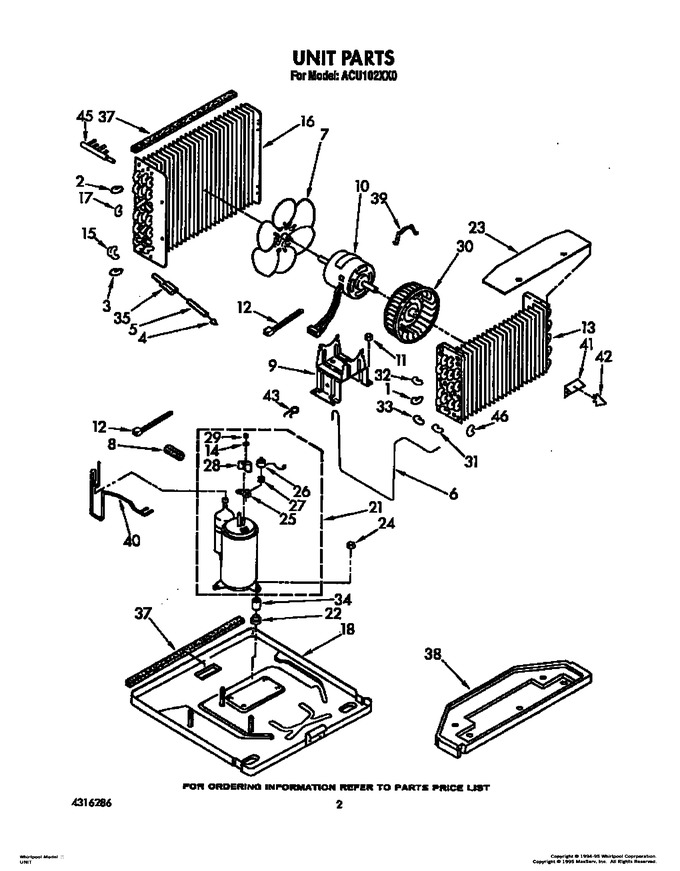

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 708532 | Bend, Return (2) |
|
- | |||||
| 2 | 1160083 | Bend, Return Condenser (2) |
|
- | |||||
| 3 | 1160079 | Bend, Return Condenser (4) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 950822 | Tube, Outlet (includes Item 4) |
|
- | |||||
| 6 | 1159926 | Tube, Restrictor (2) |
|
- | |||||
| 7 | 1159606 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1159284 | Seal, Suction Tube |
|
- | |||||
| 9 | 1156961 | Bracket, Fan Motor |
|
- | |||||
| 10 | 1159720 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 13 | 1160121 | Evaporator |
|
- | |||||
| 14 | 950037 | Gasket, Nut |
|
- | |||||
| 15 | 1160085 | Return Bend 3-way (2) |
|
- | |||||
| 16 | 1160086 | Condenser |
|
- | |||||
| 17 | 1160082 | Return Bend (2) |
|
- | |||||
| 18 | 1157199 | Base |
|
- | |||||
| 21 | 1160098 | Compressor |
|
- | |||||
| 22 | WP950021 | Grommet (3) (Replaces: 950021) |
|
$ 78.99 | |||||
| 23 | 1157173 | Insulation, Evaporator Shroud |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 26 | 951865 | Overload |
|
- | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | WP950036 | Cover, Terminal (Replaces: 950036) |
|
$ 9.83 | |||||
| 29 | WP950027 | Nut, Terminal Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 30 | 947533 | Blade, Fan (evaporator) |
|
- | |||||
| 31 | 855457 | Return Bend (2) |
|
- | |||||
| 32 | 1158407 | Return Bend (2) |
|
- | |||||
| 33 | 708531 | Return Bend (14) |
|
- | |||||
| 34 | 950020 | Sleeve (3) |
|
- | |||||
| 35 | 1159832 | Tube, Flow Divider |
|
- | |||||
| 37 | 1157622 | Seal, Condenser Bottom |
|
- | |||||
| 38 | 1158519 | Pan, Drain |
|
- | |||||
| 39 | WPY015825 | Clip, Motor (2) (Replaces: 1157015) |
|
$ 22.65 | |||||
| 40 | 1160078 | Return Bend (14) |
|
- | |||||
| 41 | 996773 | Anticipator |
|
- | |||||
| 42 | 475577 | Clip, Anticipator |
|
- | |||||
| 43 | 642684 | Clamp, Tube |
|
- | |||||
| 45 | 1159829 | Manifold Header |
|
- | |||||
| 46 | 1159642 | Return Bend |
|
- | |||||
| LIT1157672 | Instructions, Installation |
|
- | ||||||
| LIT4316286 | Literature Parts (list, Repair Parts) |
|
- | ||||||
| LIT1157635 | Wiring Diagram |
|
- | ||||||
| LIT1159792 | Tech Sheet |
|
- | ||||||
| LIT1157669 | Use And Care Guide |
|
- |
