SELECT A DIAGRAM

02 - Unit, Lit/optional


03 - Air Flow And Control


04 - Cabinet


05 - Cabinet (optional)


06 - Optional

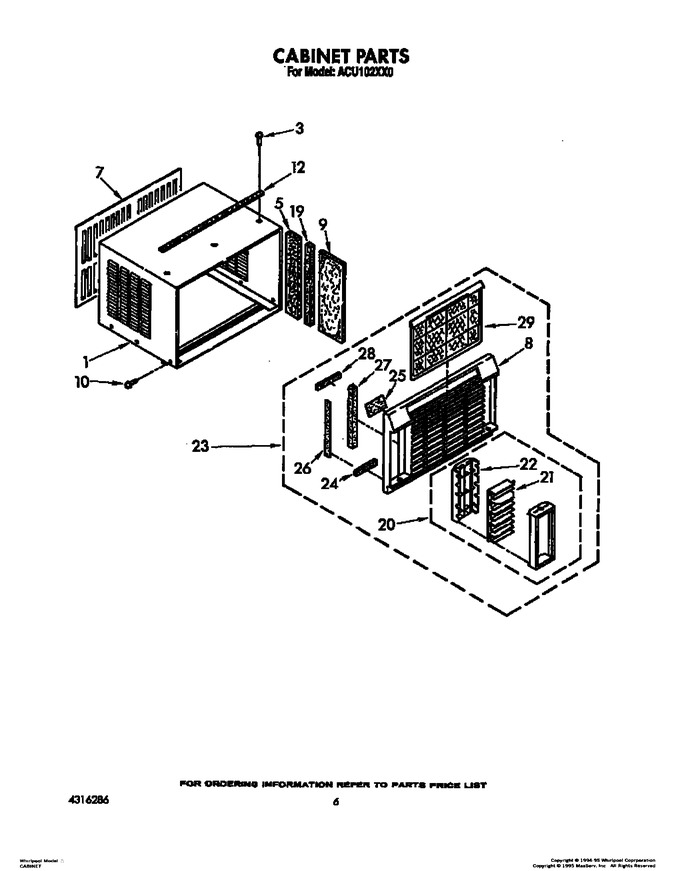

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157603		Cabinet		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
5	1160334		Insulation, Side (2)		Appelez-nous	-
7	1156968		Panel, Rear		Appelez-nous	-
8	1156971		Cabinet Front		Appelez-nous	-
9	1160333		Insulation (2)		Appelez-nous	-
10	WP489069		Screw, 8 X 7/16 (6)   (Replaces: 1157158)			Immediately	$ 7.56
12	WP854334		Seal, Cabinet Top   (Replaces: 1158269)				$ 12.55
19	1160092		Seal, Strip (2)		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1156974		Horzontal Louver		Appelez-nous	-
22	1156975		Ribs, Vertical		Appelez-nous	-
23	1161207		Front, Complete		Appelez-nous	-
24	1159080		Seal (2)		Appelez-nous	-
25	1159081		Seal		Appelez-nous	-
26	1159079		Seal (2)		Appelez-nous	-
27	1157624		Seal (2)		Appelez-nous	-
28	WP854334		Seal (2)   (Replaces: 1158270)				$ 12.55
29	1156976		Filter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
