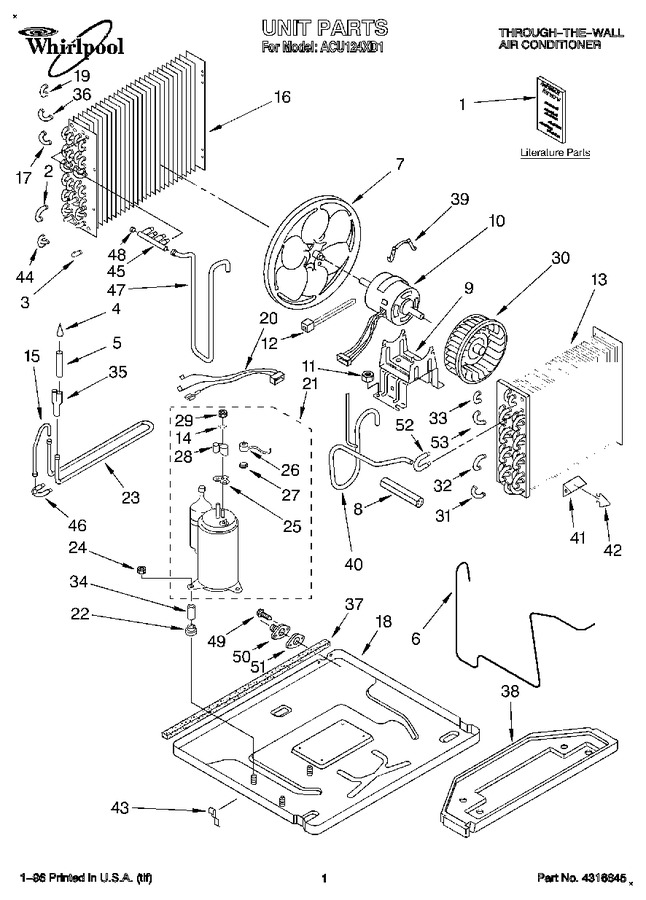

SELECT A DIAGRAM

01 - Unit, Literature


02 - Airflow And Control


03 - Cabinet


04 - Optional


05 - Sleeve Model Aow22w21 (optional)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1163570		Instructions, Installation		Appelez-nous	-
1	LIT1166503		Use And Care Guide		Appelez-nous	-
1	LIT1166489		Tech Sheet		Appelez-nous	-
1	LIT1157445		Wiring Diagram		Appelez-nous	-
2	1158407		Bend, Return Condenser (1)		Appelez-nous	-
3	708532		Bend, Return Condenser (4)		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	950822		Tube, Outlet (includes Item 4)		Appelez-nous	-
6	1165433		Tube, Restrictor (2)		Appelez-nous	-
7	1156979		Blade, Fan (condenser)				$ 61.53
8	1165440		Seal, Suction Tube		Appelez-nous	-
9	1156961		Bracket, Fan Motor		Appelez-nous	-
10	1163416		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex (4)   (Replaces: 1160408)				$ 6.59
12	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
13	1165346		Evaporator		Appelez-nous	-
14	950037		Gasket, Nut		Appelez-nous	-
15	1165438		Tube, Wet Loop Connect		Appelez-nous	-
16	1160086		Condenser		Appelez-nous	-
17	1158692		Return Bend Condenser (1)		Appelez-nous	-
18	1162966		Base		Appelez-nous	-
19	708531		Bend, Return Condenser (14)		Appelez-nous	-
20	1157607		Harness, Wiring (compressor)		Appelez-nous	-
21	1159698		Compressor		Appelez-nous	-
22	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
23	1165439		Wet Loop		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	1159722		Overload		Appelez-nous	-
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
29	WP950027		Nut, Terminal Cover   (Replaces: 950027)				$ 5.20
30	1161550		Blower, Wheel (evaporator)		Appelez-nous	-
31	855457		Return Bend (2)		Appelez-nous	-
32	855644		Return Bend (8)		Appelez-nous	-
33	855199		Return Bend (2)		Appelez-nous	-
34	950020		Sleeve (3)		Appelez-nous	-
35	1159832		Tube, Flow Divider		Appelez-nous	-
36	1156329		Bend, Return Condenser (2)		Appelez-nous	-
37	1157622		Seal, Condenser Bottom		Appelez-nous	-
38	1158519		Pan, Drain		Appelez-nous	-
39	WPY015825		Clip, Motor (2)   (Replaces: 1157015)				$ 22.65
40	1163924		Tube, Suction (includes Item 52)		Appelez-nous	-
41	1166782		Anticipator		Appelez-nous	-
42	642080		Clip, Anticipator		Appelez-nous	-
43	471088		Clamp, Tube		Appelez-nous	-
44	1158685		Return Bend 3-way (2)		Appelez-nous	-
45	1159829		Manifold Header		Appelez-nous	-
46	1159642		Return Bend Three-way		Appelez-nous	-
47	1159778		Tube, Discharge		Appelez-nous	-
48	1160488		Cap, Manifold		Appelez-nous	-
49	WP489069		Screw No.8 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
50	1163502		Drain Plug		Appelez-nous	-
51	1164093		Gasket, Drain Plug		Appelez-nous	-
52	1161002		Return Bend 3-way		Appelez-nous	-
53	854624		Bend, Return Evaporator (8)		Appelez-nous	-
