SELECT A DIAGRAM
01 - Unit, Literature
02 - Airflow And Control
03 - Cabinet
04 - Optional

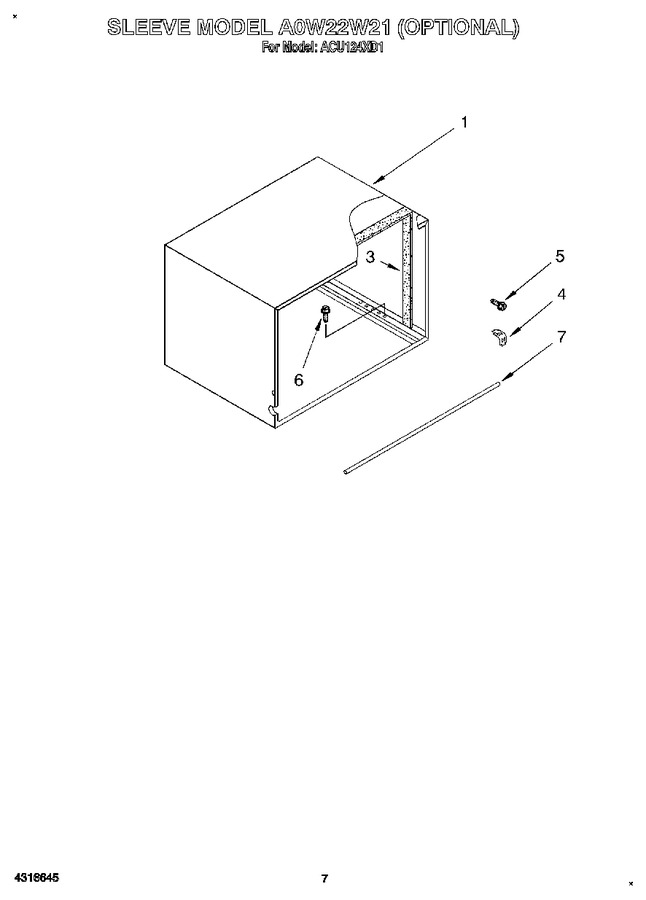

05 - Sleeve Model Aow22w21 (optional)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1162968 | Cabinet |
|
- | |||||
| 3 | 1160111 | Seal, Cabinet (top) |
|
- | |||||
| 3 | 1160112 | Seal, Cabinet (sides) (2) |
|
- | |||||
| 3 | 1160113 | Seal, Cabinet (rear) (2) |
|
- | |||||
| 4 | 1160605 | Bracket, Support (5) |
|
- | |||||
| 5 | WP489069 | Screw No.8 X 3/8 (10) (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 6 | 487371 | Screw No.10 X 3/4 (8) |
|
- | |||||
| 7 | 212643 | Sealer, Gum Type (Replaces: 470168) |
|
Immediately | $ 86.78 |
