SELECT A DIAGRAM

01 - Unit, Lit/optional


02 - Airflow & Control


03 - Cabinet


04 - Optional

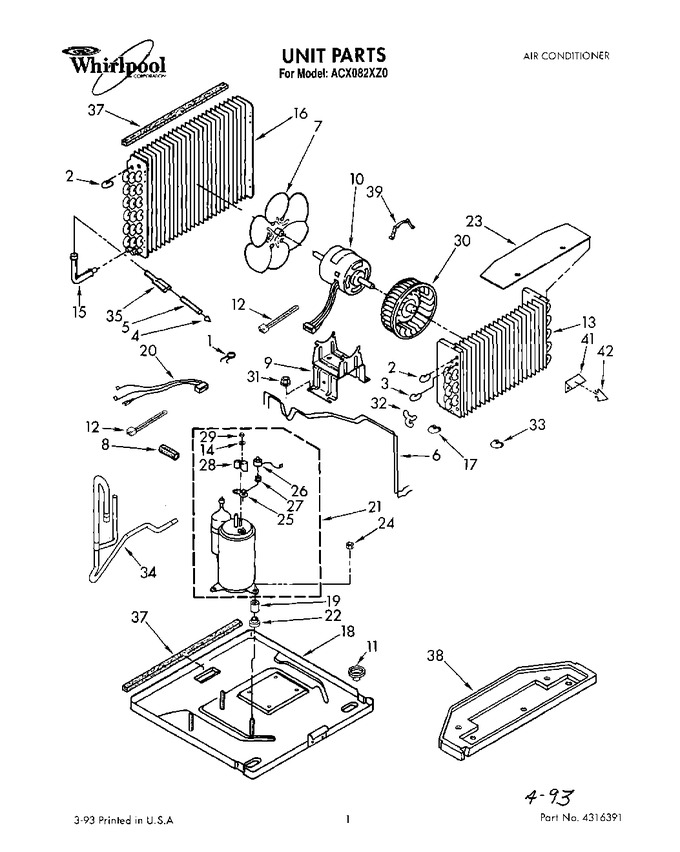

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	471088		Clamp, Tube		Appelez-nous	-
2	708532		Bend, Return Condenser (13) Evaporator (9)		Appelez-nous	-
3	855199		Bend, Return Evaporator (3)		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	1155460		Tube, Outlet (includes Illus. 4)		Appelez-nous	-
6	1164067		Tube, Restrictor		Appelez-nous	-
7	1156979		Blade, Fan (condenser)				$ 61.53
8	1159284		Seal, Tube		Appelez-nous	-
9	1156961		Bracket, Fan Motor		Appelez-nous	-
10	1163156		Motor, Fan		Appelez-nous	-
11	997285		Cup, Condensate Drain		Appelez-nous	-
12	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
13	1163157		Evaporator		Appelez-nous	-
14	950037		Gasket, Nut		Appelez-nous	-
15	1163715		Tube, 90~ Connect		Appelez-nous	-
16	1157163		Condenser		Appelez-nous	-
17	854624		Bend, Return		Appelez-nous	-
18	1162623		Base		Appelez-nous	-
19	858148		Sleeve, Mtg.		Appelez-nous	-
20	1158044		Harness, Wiring (compressor Service)		Appelez-nous	-
21	4317916		Compressor   (Replaces: 1160951)		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	1157173		Insulation, Evaporator Shroud		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	WP1161170		Overload (production)   (Replaces: 1161170)				$ 84.72
26	WP1161170		Overload (service)   (Replaces: 951494)				$ 84.72
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
29	WP950027		Nut, Terminal Cover   (Replaces: 950027)				$ 5.20
30	1163571		Wheel, Blower (evaporator)		Appelez-nous	-
31	WP488130		Keps Nut   (Replaces: 1160408)				$ 6.59
32	953169		Bend, Return (3-way)		Appelez-nous	-
33	855644		Bend, Return		Appelez-nous	-
34	1163621		Tube, Suction Asy		Appelez-nous	-
35	947364		Tube, Flow Divider		Appelez-nous	-
37	1157622		Seal, Condenser Bottom		Appelez-nous	-
37	WP854334		Seal, Condenser (top)   (Replaces: 1157623)				$ 12.55
38	1158519		Pan, Drain		Appelez-nous	-
39	WPY015825		Clip, Motor (2)   (Replaces: 1157015)				$ 22.65
41	1164141		Anticipator		Appelez-nous	-
42	475577		Clip, Anticipator		Appelez-nous	-
	LIT1160846		Wiring Diagram		Appelez-nous	-
	LIT1160847		Tech Sheet		Appelez-nous	-
	LIT1162619		Use & Care Guide		Appelez-nous	-
	LIT4316391		List, Repair Parts		Appelez-nous	-
	LIT1163225		Instructions, Installation		Appelez-nous	-
