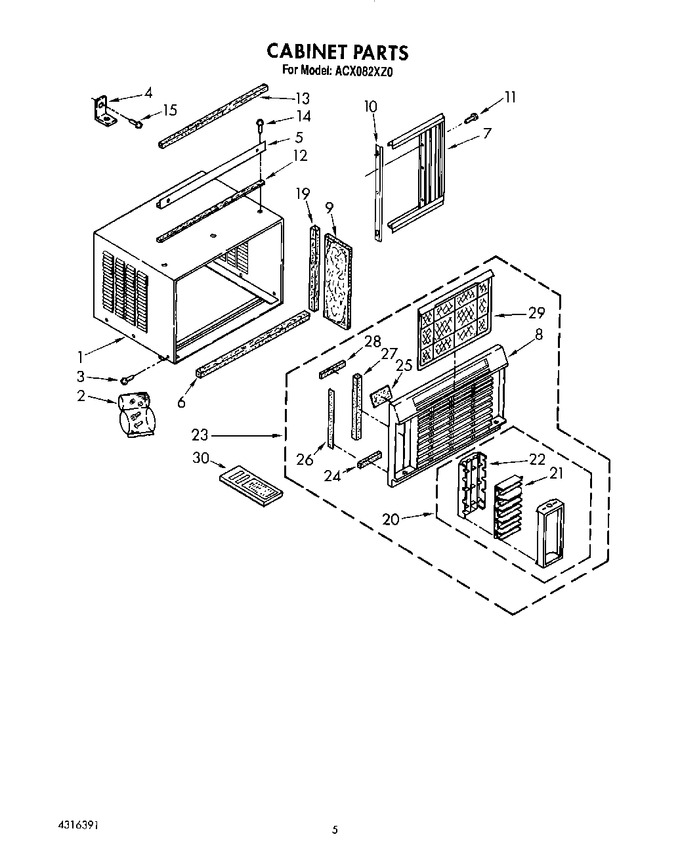

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1163055		Cabinet		Appelez-nous	-
2	1157654		Accessory, Bag		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
4	644228		Bracket, Lock		Appelez-nous	-
5	1157196		Chanel, Top		Appelez-nous	-
6	1159289		Seal		Appelez-nous	-
7	1157665		Housing, Curtain (left Side)		Appelez-nous	-
7	1157666		Housing, Curtain (right Side)		Appelez-nous	-
8	1156971		Cabinet Front		Appelez-nous	-
9	1161748		Insulation (2)		Appelez-nous	-
10	644224		Retainer, Curtain		Appelez-nous	-
11	1161561		Screw 3/8 Sg		Appelez-nous	-
12	1158593		Seal, Cabinet Top		Appelez-nous	-
13	469877		Seal, Meeting Rail		Appelez-nous	-
14	WP489069		Screw, 8-3/8 Sg   (Replaces: 1157158)			Immediately	$ 7.56
15	488255		Screw, 8 X 3/4		Appelez-nous	-
19	1159254		Seal, Strip (2)		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1159333		Horzontal Louver (right, Side)		Appelez-nous	-
21	1156974		Horzontal Louver (left Side).		Appelez-nous	-
22	1156975		Ribs, Vertical		Appelez-nous	-
23	1161557		Front, Complete		Appelez-nous	-
24	1161746		Seal, (2)		Appelez-nous	-
25	1159081		Seal		Appelez-nous	-
26	1159079		Seal (2)		Appelez-nous	-
27	1161205		Seal (2)		Appelez-nous	-
28	1161747		Seal (2)		Appelez-nous	-
29	1156976		Filter		Appelez-nous	-
30	1160624		Control, Remote		Appelez-nous	-
