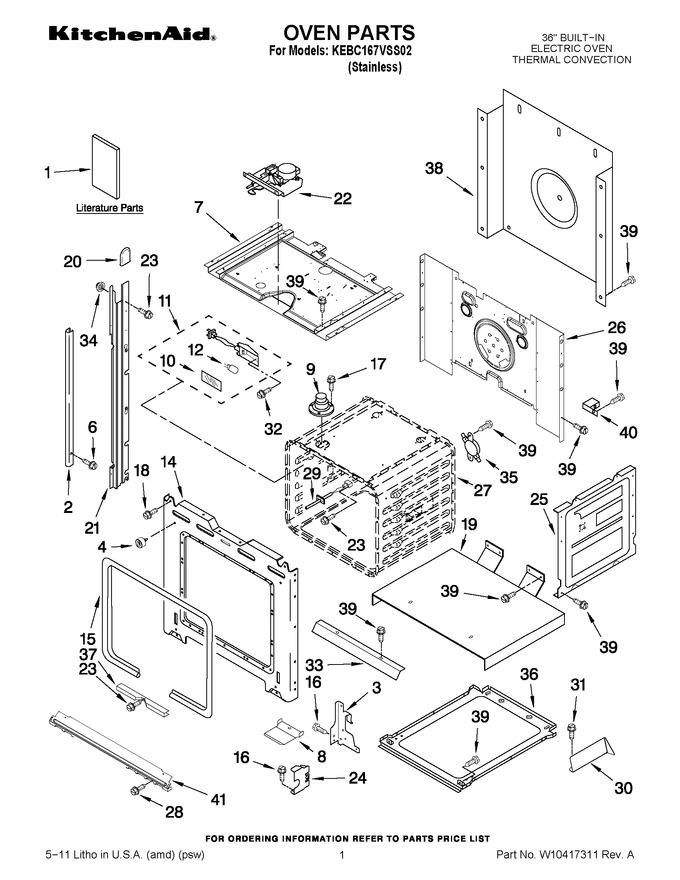

01 - Oven Parts
02 - Control Panel Parts
03 - Internal Oven Parts
04 - Oven Door Parts
05 - Top Venting Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | 8304426 | Installation Instructions |
|
- | |||||
| 1 | W10162183 | Use & Care Guide |
|
- | |||||
| 1 | W10185214 | Tech Sheet (english) |
|
- | |||||
| 1 | W10185215 | Tech Sheet (french) |
|
- | |||||
| 1 | 4449264 | Easy Set Guide (english) |
|
- | |||||
| 1 | 4448687 | Easy Set Guide (french) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 2 | W10144984 | Trim, Side (left) |
|
$ 133.34 | |||||
| 2 | WPW10144983 | Trim, Side (right) (Replaces: W10144983) |
|
$ 148.28 | |||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 114.93 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 118.57 | ||||
| 4 | 9760761 | Bumper, Door Frame |
|
- | |||||
| 6 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.80 | |||||
| 7 | 8301784 | Top, Chassis |
|
- | |||||
| 8 | W10145009 | Deflector, Vent |
|
$ 73.45 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 110.21 | |||||
| 10 | W10169756 | Lens, Light |
|
$ 37.97 | |||||
| 11 | WPW10307114 | Assembly, Oven Light (Replaces: W10307114) |
|
Immediately | $ 104.41 | ||||
| 12 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 46.52 | ||||
| 14 | W10160867 | Frame, Front |
|
$ 190.89 | |||||
| 15 | W11676901 | Gasket, Door (Replaces: 8300142) |
|
$ 68.17 | |||||
| 16 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.80 | |||||
| 17 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 18 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 19 | 8300184 | Support, Insulation |
|
- | |||||
| 20 | 4451605 | Cap, Spacer |
|
$ 38.55 | |||||
| 21 | 814372 | Rail, Side (left) (Replaces: 4450580) |
|
$ 114.07 | |||||
| 21 | 814371 | Rail, Side (right) (Replaces: 4450579) |
|
$ 115.01 | |||||
| 22 | WPW10195934 | Latch, Motorized (Replaces: W10195934) |
|
Immediately | $ 300.34 | ||||
| 23 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 24 | 4452152 | Bracket, Mounting |
|
$ 31.66 | |||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 135.62 | |||||
| 26 | 8302199 | Back, Chassis |
|
- | |||||
| 27 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 28 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 7.36 | ||||
| 29 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 94.50 | ||||
| 30 | 8302339 | Bracket, Deflector (left) |
|
- | |||||
| 30 | 8302338 | Bracket, Deflector (right) |
|
- | |||||
| 31 | WP3400805 | Screw (Replaces: 3400805) |
|
$ 6.80 | |||||
| 32 | 4449748 | Screw |
|
$ 12.81 | |||||
| 33 | 8301780 | Deflector, Vent |
|
- | |||||
| 34 | WP4448444 | Grommet, Mounting Rail (Replaces: 4448444) |
|
$ 7.07 | |||||
| 35 | WP9759243 | Thermostat (Replaces: 9759243) |
|
Immediately | $ 53.60 | ||||
| 36 | 8302327 | Base, Chassis |
|
- | |||||
| 37 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 8.37 | |||||
| 38 | WP4451747 | Cover, Back (Replaces: 4451747) |
|
$ 135.06 | |||||
| 39 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 40 | 4449845 | Support, Bracket |
|
- | |||||
| 41 | W10194389 | Trim, Bottom |
|
- | |||||
| NI | W10860322 | Insulation, Wrapper (Replaces: W10246067) |
|
- | |||||
| NI | 8300159 | Insulation, Back |
|
- |
