01 - Oven Parts
02 - Control Panel Parts
03 - Internal Oven Parts

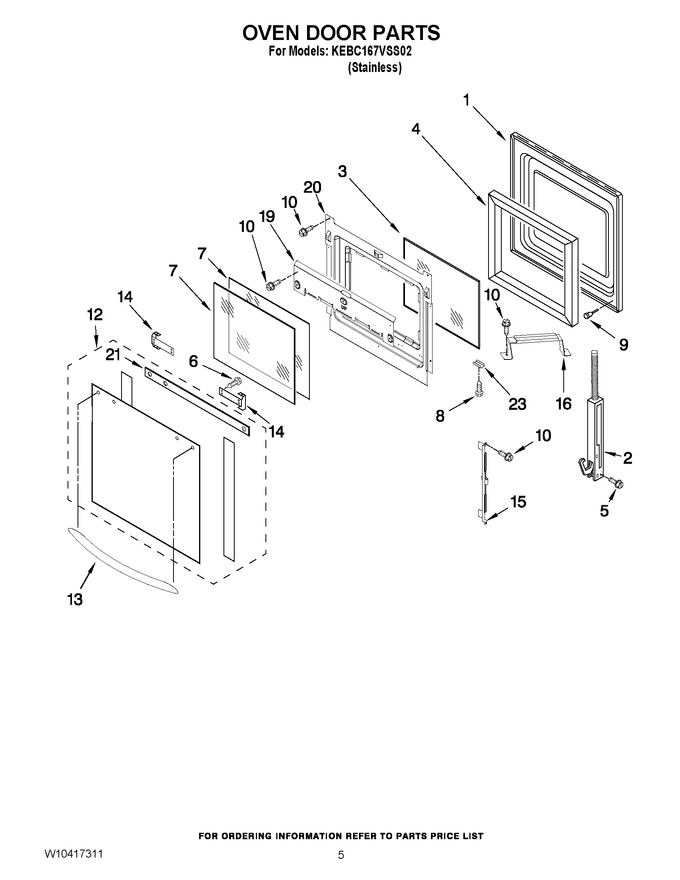

04 - Oven Door Parts
05 - Top Venting Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8300152 | Door Liner |
|
$ 148.16 | |||||
| 2 | WP9760574 | Hinge, Door (left) (Replaces: 9760580) |
|
Immediately | $ 102.33 | ||||
| 2 | WP9760579 | Hinge, Door (right) (Replaces: 9760579) |
|
Immediately | $ 103.76 | ||||
| 3 | WP4449259 | Glass, Inner (Replaces: 4449259) |
|
$ 192.01 | |||||
| 4 | 8300797 | Insulation, Door |
|
$ 72.37 | |||||
| 5 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.80 | |||||
| 6 | WPW10132940 | Screw (Replaces: 3196184) |
|
$ 9.11 | |||||
| 7 | WP4449263 | Glass, Inner (Replaces: 4449263) |
|
Immediately | $ 203.42 | ||||
| 8 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 7.36 | ||||
| 9 | 4448520 | Bumper, Door |
|
$ 20.03 | |||||
| 10 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 12 | W10194367 | Assembly, Door Glass |
|
- | |||||
| 13 | W10199976 | Door Handle |
|
- | |||||
| 14 | 4455804 | Bracket, Handle (left) |
|
$ 25.95 | |||||
| 14 | 4455803 | Bracket, Handle (right) |
|
$ 30.70 | |||||
| 15 | WP9759229 | Bracket(2nd Glass) (Replaces: 9759229) |
|
$ 168.75 | |||||
| 16 | 9759230 | Bracket(3rd Glass) |
|
$ 36.30 | |||||
| 19 | 8301089 | Shield, Heat |
|
- | |||||
| 20 | 8300190 | Retainer, Glass |
|
- | |||||
| 21 | 8300153 | Seal, Door Top |
|
- | |||||
| 23 | W10158497 | Retainer, Clip |
|
$ 5.65 |
