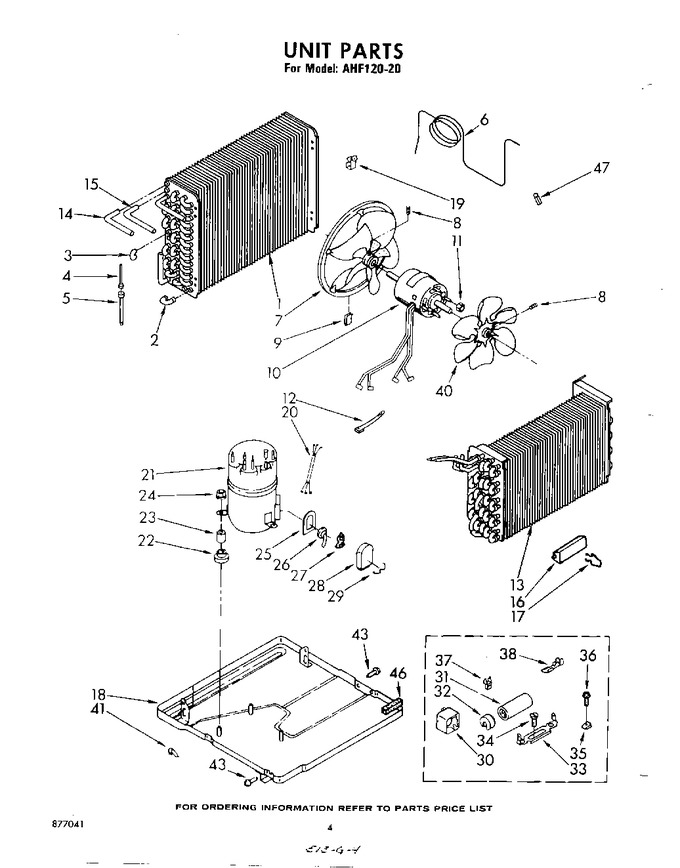

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


04 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	947715		Condenser		Appelez-nous	-
2	854624		Bend, Return (16) Condenser		Appelez-nous	-
3	855199		Bend, Return (11) Condenser		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer		Appelez-nous	-
6	947611		Tube, Restrictor		Appelez-nous	-
7	997904		Blade, Fan		Appelez-nous	-
8	595085		Setscrew, 5/16 X 1/4		Appelez-nous	-
9	485334		Clip, Balancing		Appelez-nous	-
10	947852		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex (4)   (Replaces: 488130)				$ 6.59
12	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
13	947717		Evaporator		Appelez-nous	-
14	947612		90o Bend		Appelez-nous	-
15	947613		90o Bend (2)		Appelez-nous	-
16	996773		Anticipator, Temperature		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	859405		Base		Appelez-nous	-
19	855930		Clamp		Appelez-nous	-
20	484136		Harness, Wiring (compressor Service)		Appelez-nous	-
21	484202		Compressor		Appelez-nous	-
22	469581		Grommet (3)		Appelez-nous	-
23	858148		Sleeve (3)		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	643296		Gasket, Terminal Cover		Appelez-nous	-
26	852521		Overload		Appelez-nous	-
27	644362		Spring, Overload		Appelez-nous	-
28	855762		Cover, Terminal		Appelez-nous	-
29	475062		Strap, Terminal Cover		Appelez-nous	-
30	484177		Relay (component Of Start Kit)		Appelez-nous	-
31	48616		Capacitor (component Of Start Kit)		Appelez-nous	-
32	465280		Cap, Capacitor (component Of Start Kit)		Appelez-nous	-
33	35564		Bracket, Capacitor (component Of Start Kit)				$ 262.34
34	487880		Screw, 10 X 5/8 (component Of Start Kit)		Appelez-nous	-
35	488660		Nut, Speed (component Of Start Kit)   (Replaces: 486197)		Appelez-nous	-
36	WP965173		Screw, 8 X 3/8 Component Of Start Kit)   (Replaces: 487869)			Immediately	$ 10.68
37	90654		Multiplier, Terminal (component Of Start Kit)		Appelez-nous	-
38	45571		Clip, Terminal (component Of Start Kit)		Appelez-nous	-
40	947533		Blade, Fan (evaporator)		Appelez-nous	-
41	852451		Clamp		Appelez-nous	-
43	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
43	WP308685		Screw, Repair   (Replaces: 488861)			Immediately	$ 7.08
46	WP854334		Seal, Base   (Replaces: 854028)				$ 12.55
47	857548		Split Dampener		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
