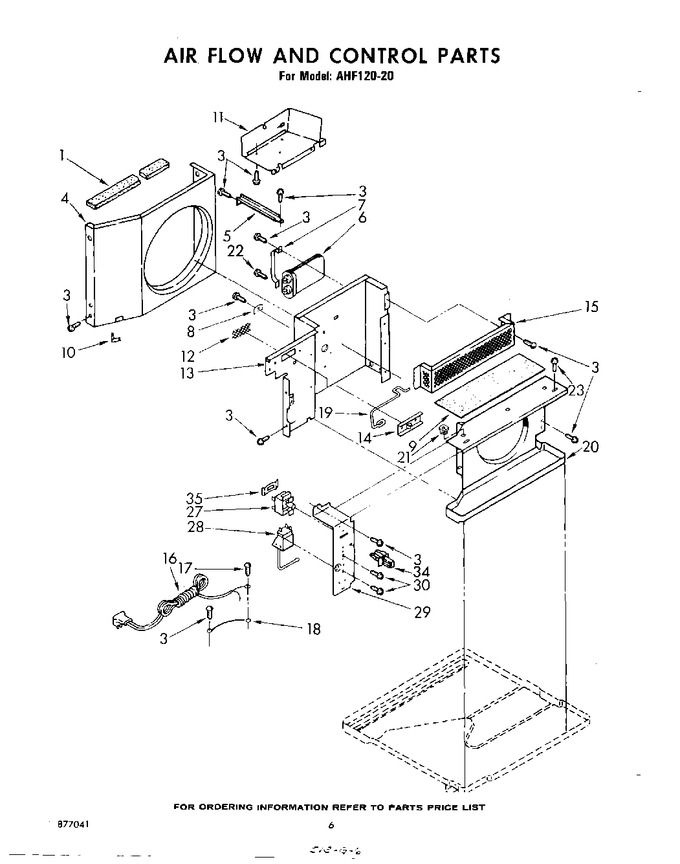

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP854334 | Seal, Condenser (Replaces: 859600) |
|
$ 12.55 | |||||
| 3 | WP308685 | Screw, Repair (Replaces: 488861) |
|
Immediately | $ 7.08 | ||||
| 3 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 4 | 856037 | Shroud, Condenser |
|
- | |||||
| 5 | 858663 | Support, Unit (2) |
|
- | |||||
| 6 | 947853 | Capacitor, Running |
|
- | |||||
| 7 | 475844 | Bracket, Capacitor (2) |
|
- | |||||
| 8 | 855929 | Clamp, Ground |
|
- | |||||
| 9 | 948220 | Insulation, Evaporator Cover |
|
- | |||||
| 10 | 644401 | Clip, Retainer |
|
- | |||||
| 11 | 994560 | Extension, Dividing Wall (requires Insulation Part No. 469938) |
|
- | |||||
| 12 | 856929 | Screen, Exhaust Door |
|
- | |||||
| 13 | 947867 | Dividing Wall (requires Insulation Part No. 469938) |
|
- | |||||
| 14 | 644206 | Door, Exhaust |
|
- | |||||
| 15 | 856912 | Guard, Evaporator Impeller |
|
- | |||||
| 16 | 646306 | Cord, Service |
|
- | |||||
| 17 | WPW10141604 | Screw, 8 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 18 | 856094 | Wire, Ground |
|
- | |||||
| 19 | 856042 | Arm, Exhaust Door |
|
- | |||||
| 20 | 856039 | Shroud, Evaporator |
|
- | |||||
| 21 | 487808 | Fastener, Snap |
|
- | |||||
| 22 | WP488163 | Screw, Small No. 8 X 13/16a (Replaces: 488208) |
|
$ 7.13 | |||||
| 23 | WP488729 | Screw, Sems Small No. 8 X 1/2a (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 27 | 947571 | Switch, Rotary |
|
- | |||||
| 28 | 852543 | Control, Temperature |
|
- | |||||
| 29 | 996966 | Panel, Control |
|
- | |||||
| 30 | 488734 | Screw, 6 X .175 |
|
- | |||||
| 34 | 947468 | Actuator, Exhaust Door |
|
- | |||||
| 35 | 948435 | Guide, Energy |
|
- | |||||
| 35 | 484184 | Cover, Winter |
|
$ 64.85 | |||||
| 35 | 484220 | Start Assist Kit |
|
- | |||||
| 35 | 485608 | Start Kit |
|
- | |||||
| 35 | 947596 | Guide, Use & Care |
|
- | |||||
| 35 | 877041 | List, Parts |
|
- | |||||
| 35 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 35 | 858765 | Spring, Retainer |
|
- | |||||
| 35 | 469938 | Insulation, Fiberglass (1/4`` X 24`` X 48``) |
|
- | |||||
| 35 | 476810 | Insulation, Fiberglass (cabinet Only) |
|
- | |||||
| 35 | WP279368 | Cement, Attach Insulation) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 35 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 35 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 35 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 35 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 35 | 212643 | Sealer, Gum Type (cabinet & Windows) (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| 35 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 35 | 505168 | No Drip Tape (for Sweating Tubes) |
|
- | |||||
| 35 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 35 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 35 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 35 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 35 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 35 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 |
