SELECT A DIAGRAM

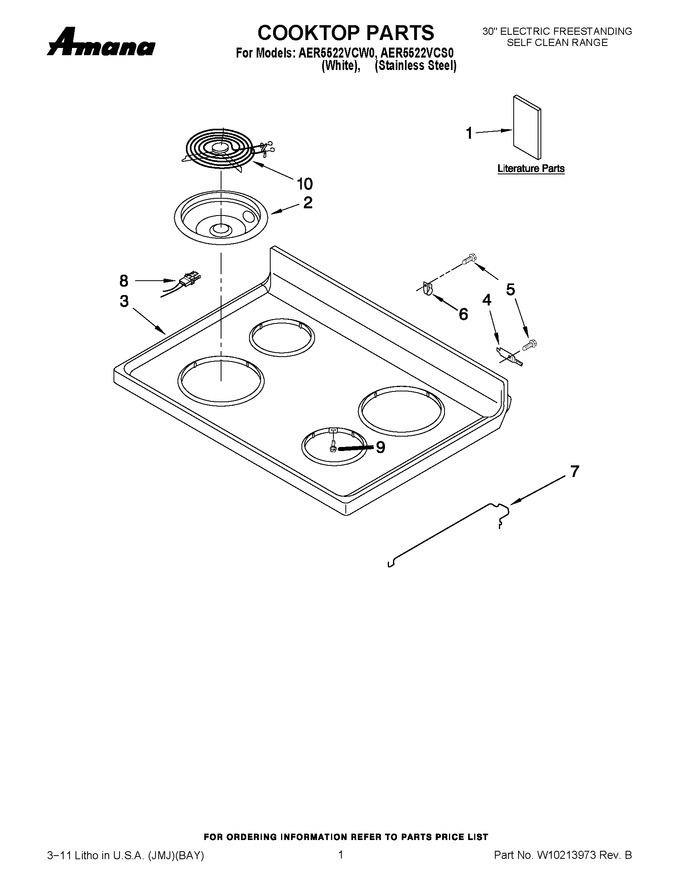

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10198628 | Tech Sheet (english) |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10196162 | Owners Manual English/french |
|
- | |||||
| 1 | W10198629 | Tech Sheet (french) |
|
- | |||||
| 1 | W10196159 | Instructions, Installation English/french |
|
- | |||||
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6`` Chrome) (Replaces: W10196406) |
|
Immediately | $ 12.05 | ||||
| 2 | WPW10196405 | Bowl, Drip (8`` Chrome) (Replaces: W10196405) |
|
Immediately | $ 15.56 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 377.38 | |||||
| 3 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 458.94 | |||||
| 4 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 6 | WP308605 | Strain Relief (Replaces: 308605) |
|
$ 10.58 | |||||
| 7 | WP3195812 | Rod, Support (2) (Replaces: 3195812) |
|
Immediately | $ 7.86 | ||||
| 8 | 814399 | Receptacle, Elmnt |
|
Immediately | $ 38.87 | ||||
| 9 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 10 | WP660532 | Element, Surface (6`` (2)) (Replaces: 9761347) |
|
Immediately | $ 45.10 | ||||
| 10 | WPW10259865 | Element, Surface (8`` (2)) (Replaces: 9761345) |
|
Immediately | $ 129.78 |
